Firing pin problem?
Avatar
3ric
Member
Members
Forum Posts: 407
Member Since:
October 18, 2017
sp_UserOnlineSmall Online
41
June 19, 2022 - 10:55 pm
sp_Permalink sp_Print

Sorry, Jay, just noticed the earlier posts. You say that it fires every time; is that double action or single? The hand may need just a little filing if it is fitting too tightly when engaging the ratchet. That drag could account for the sluggish feel you described. This is difficult to diagnose without a hands on view. I would focus on getting the side plate to fit flush with the frame first, and proceed from there.

Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 3223
Member Since:
March 25, 2013
sp_UserOfflineSmall Offline
42
June 20, 2022 - 3:52 am
sp_Permalink sp_Print

Jay, did you check to see if the frame pin that holds the hand is fully seated? Also, the trigger return spring may be slightly bowed out towards the sideplate. That could cause the hand to be not fully seated, causing that sluggish feeling.

Avatar
Jay191115-2
Member
Members
Forum Posts: 33
Member Since:
June 13, 2022
sp_UserOfflineSmall Offline
43
June 20, 2022 - 4:52 am
sp_Permalink sp_Print

3ric said
Not sure, but more concerned about the gap between the frame and side plate. Check for burrs on both surfaces and file if necessary. You’ve said that the gun is clean, but check the tiny corners for caked on debris. If you do find something and get a tighter fit, the hand may start to bind, but hopefully not. Does the timing seem correct now? If so, maybe you don’t need to do anything more to it.



After posting the picture I noticed the gap, I’ll take a second look.

Timing is still off.

Avatar
Jay191115-2
Member
Members
Forum Posts: 33
Member Since:
June 13, 2022
sp_UserOfflineSmall Offline
44
June 20, 2022 - 4:57 am
sp_Permalink sp_Print

Ole Dog said
Jay, did you check to see if the frame pin that holds the hand is fully seated? Also, the trigger return spring may be slightly bowed out towards the sideplate. That could cause the hand to be not fully seated, causing that sluggish feeling.



I’ll take a look at that.

Avatar
3ric
Member
Members
Forum Posts: 407
Member Since:
October 18, 2017
sp_UserOnlineSmall Online
45
June 20, 2022 - 8:43 am
sp_Permalink sp_Print

Can you send us a photo of the inner side of the side plate? There has to be something we’re missing here; we’ll eventually figure it out. Hang in there, Jay.

Avatar
3ric
Member
Members
Forum Posts: 407
Member Since:
October 18, 2017
sp_UserOnlineSmall Online
46
June 20, 2022 - 8:52 am
sp_Permalink sp_Print
Avatar
Jay191115-2
Member
Members
Forum Posts: 33
Member Since:
June 13, 2022
sp_UserOfflineSmall Offline
47
June 20, 2022 - 4:18 pm
sp_Permalink sp_Print

3ric said
Can you send us a photo of the inner side of the side plate? There has to be something we’re missing here; we’ll eventually figure it out. Hang in there, Jay.

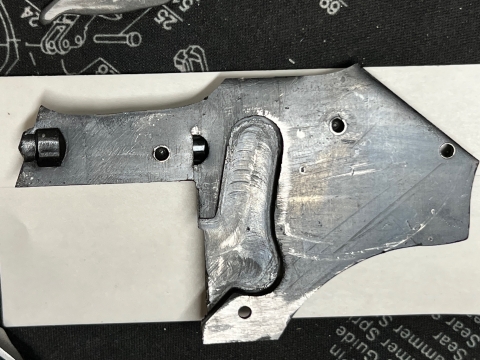

5ACD8087-94BF-4B89-81D5-47F931D13354.jpegImage Enlarger

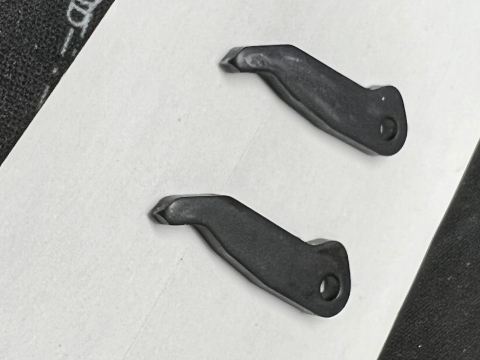

BE14EDB0-342D-483A-B6F9-DDF62072D96E.jpegImage Enlarger

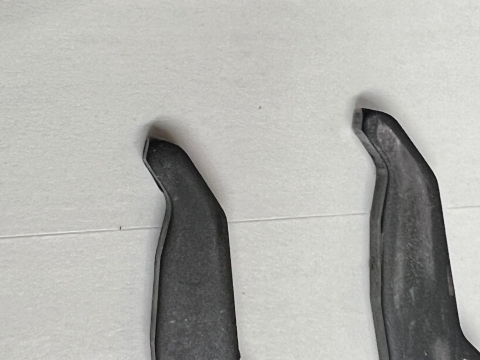

E734A3C5-E74C-4D76-A971-8D3FEE9D18C3.jpegImage Enlarger

Avatar
KurtB
Pleasant Plains, Illinois
Member

Dans Club
Forum Posts: 503
Member Since:
February 24, 2013
sp_UserOfflineSmall Offline
48
June 20, 2022 - 8:38 pm
sp_Permalink sp_Print

This thread is outstanding information for any future DW owners encountering similar problems/issues!!


Avatar
3ric
Member
Members
Forum Posts: 407
Member Since:
October 18, 2017
sp_UserOnlineSmall Online
49
June 20, 2022 - 9:40 pm
sp_Permalink sp_Print

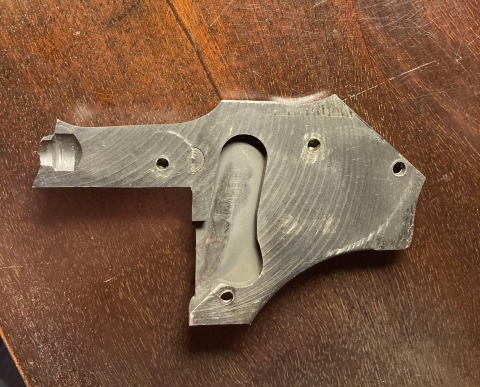

Once again, the photos don't seem to reveal much. I'm assuming the hand on the right is the new one? I've attached a photo of my 15-2 side plate. Not sure of what you may have for measuring purposes, but the depth of the hand recess in the side plate is .124 on mine. This should be fairly consistent for all small frame DW's. I do notice some machining marks in this area of your side plate, so it's possible someone tried to deepen this at some point in this revolver's history, which would be the WRONG thing to do, but only a careful measurement would reveal if this has been done. I doubt it actually, as it would require the use of an end mill which most of us do not have access to. The other possibility that I'm considering is that your side plate could be "bowed"; that is not flat when laid on a flat surface (like a granite counter top for example). If you find that it is indeed bowed I'm not sure how to advise you on how to straighten it. Hopefully another member can offer a "how to" if that ends up being the case. This is definitely a puzzling case for sure.IMG_0991.jpgImage Enlarger

Avatar
Jay191115-2
Member
Members
Forum Posts: 33
Member Since:
June 13, 2022
sp_UserOfflineSmall Offline
50
June 21, 2022 - 4:48 am
sp_Permalink sp_Print

3ric said
Once again, the photos don't seem to reveal much. I'm assuming the hand on the right is the new one? I've attached a photo of my 15-2 side plate. Not sure of what you may have for measuring purposes, but the depth of the hand recess in the side plate is .124 on mine. This should be fairly consistent for all small frame DW's. I do notice some machining marks in this area of your side plate, so it's possible someone tried to deepen this at some point in this revolver's history, which would be the WRONG thing to do, but only a careful measurement would reveal if this has been done. I doubt it actually, as it would require the use of an end mill which most of us do not have access to. The other possibility that I'm considering is that your side plate could be "bowed"; that is not flat when laid on a flat surface (like a granite counter top for example). If you find that it is indeed bowed I'm not sure how to advise you on how to straighten it. Hopefully another member can offer a "how to" if that ends up being the case. This is definitely a puzzling case for sure.IMG_0991.jpgImage Enlarger

  I’ll take another picture that’s not so over exposed and also measure the side plate. I also have a machined steel plate to check for true.

Avatar
rwsem
SOWELA (Southwest Louisiana)

Supporter
Members


Moderators


Dans Club
Forum Posts: 5096
Member Since:
February 22, 2009
sp_UserOfflineSmall Offline
51
June 21, 2022 - 5:09 am
sp_Permalink sp_Print

The wear on your side plate shows the handspring has been misplaced for a long time, based on the wear marks along the recessed cut.  As I stated in post 30/33/34; reassemble, ensuring everything is put in its place and try it again.  If you're certain that isn't it, take a picture of the star ejector so we can see the wear marks on it. The old hand doesn't look worn out and I doubt the ejector is but you never know...

Technically, the glass is always full; half liquid, half air....

Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 3223
Member Since:
March 25, 2013
sp_UserOfflineSmall Offline
52
June 21, 2022 - 9:12 am
sp_Permalink sp_Print

I don't recall any of my guns having the striated milling marks on the inside of the sideplate. I wonder if they were done aftermarket. Very light polishing of those striations may help the action. Does the sideplate fit well on the outside? Is it flush with the frame? And please, please give that dry gun a drink of gun oil.

Avatar
3ric
Member
Members
Forum Posts: 407
Member Since:
October 18, 2017
sp_UserOnlineSmall Online
53
June 21, 2022 - 9:15 am
sp_Permalink sp_Print

Main thing we have to do is to get that side plate to sit flush; that gap is no good.

Avatar
Stinger
Member
Members
Forum Posts: 2877
Member Since:
February 16, 2016
sp_UserOfflineSmall Offline
54
June 21, 2022 - 9:22 am
sp_Permalink sp_Print

rwsem said
The wear on your side plate shows the handspring has been misplaced for a long time, based on the wear marks along the recessed cut.  As I stated in post 30/33/34; reassemble, ensuring everything is put in its place and try it again.

I agree with Ron.

Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 3223
Member Since:
March 25, 2013
sp_UserOfflineSmall Offline
55
June 21, 2022 - 8:44 pm
sp_Permalink sp_Print

Which Ron? 😆. I agree with Ron too. You can call me Cassandra though. The Oracle from Troy cursed by Opollo to always be right but never to be believed.

Avatar
3ric
Member
Members
Forum Posts: 407
Member Since:
October 18, 2017
sp_UserOnlineSmall Online
56
June 21, 2022 - 10:01 pm
sp_Permalink sp_Print

I can only assume that Jay assembled the gun properly when trying out the new hand. I agree with 3ric; whatever is preventing the side plate from seating properly is the root cause of the problem.

Avatar
3ric
Member
Members
Forum Posts: 407
Member Since:
October 18, 2017
sp_UserOnlineSmall Online
57
June 21, 2022 - 10:33 pm
sp_Permalink sp_Print

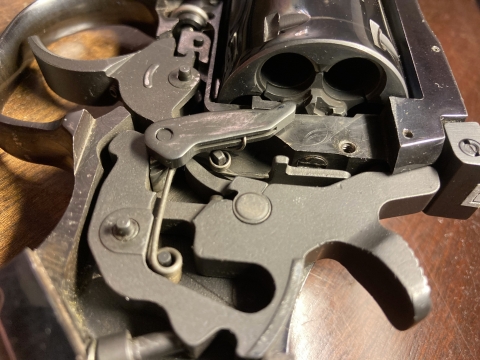

Just to be absolutely certain on proper assembly: this is what you should be looking at before adding the side plate. IMG_0997.JPGImage Enlarger

Avatar
Jay191115-2
Member
Members
Forum Posts: 33
Member Since:
June 13, 2022
sp_UserOfflineSmall Offline
58
June 22, 2022 - 7:09 pm
sp_Permalink sp_Print

So, I removed the hand spring and reinstalled it because it didn’t look like it was seated correctly. It almost looked twisted on the mounting post. I also tightened the side plate screws to the almost uncomfortable point. At this point the guns timing is almost perfect when dry firing. I’m going to go to the range after work tomorrow to find out.🤞

Avatar
Jay191115-2
Member
Members
Forum Posts: 33
Member Since:
June 13, 2022
sp_UserOfflineSmall Offline
59
June 24, 2022 - 7:37 pm
sp_Permalink sp_Print

Still having issues, no change.

In the next couple days I plan to check the side plate for true. I ordered a new hand spring, I don’t expect it to fix my problem but I’m running out of ideas.

I’m a little concerned about the gap on the front of the breech.

Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 3223
Member Since:
March 25, 2013
sp_UserOfflineSmall Offline
60
June 24, 2022 - 8:30 pm
sp_Permalink sp_Print

Sideplate made before 1986 are very delicate. They break along the cylinder stop if forced in. It may be that the original sideplate broke and someone tried to fit another. They are rarely fungible. Sideplate are fitted before the frame is polished. It is very difficult to find one that fits right. Is there any difference in height of  the outside of the sideplate and the adjoining frame? Gaps? I know I have asked already but did you tap the frame pin heads on the right side of the frame to make sure it is fully seated? Use a wood or plastic hammer.
