The official DW scope mount thread
February 22, 2014
8:16 pm
Avatar
zoommb
People's Republic of Illinois

Range Officer

Dan's Club
Forum Posts: 3157
Member Since:
February 28, 2009
sp_UserOfflineSmall Offline

Steve CT said
The Leupold Rib clamps are pretty much the Holy Grail of DW Mounts/Rings.

You done Good!



Here they are:



Autumn.jpgImage Enlarger

I love ’em.

-Mike


May 14, 2014
10:41 pm
Avatar
Geddy
Member
Forum Posts: 25
Member Since:
October 5, 2013
sp_UserOfflineSmall Offline

Does anyone know who made this mount?  I would love to have this one.  Oh yeah, and the 414 Supermag its mounted on.

Image Enlarger

July 30, 2014
1:05 pm
Avatar
Hester 57
South Central ,TX
Member
Forum Posts: 215
Member Since:
July 3, 2014
sp_UserOfflineSmall Offline

Thank you for the very nice images.

July 30, 2014
7:10 pm
Avatar
rwsem
SOWELA (Southwest Louisiana)

Supporter

Dan's Club
Forum Posts: 4482
Member Since:
February 22, 2009
sp_UserOfflineSmall Offline

Hey Geddy- I missed that request- Dekker on Specialty Pistols made that as a one off- I’m guessing you figured that out since you are on that forum too.

Technically, the glass is always full; half liquid, half air....

August 4, 2014
1:14 pm
Avatar
Sam
Member
Forum Posts: 2
Member Since:
August 4, 2014
sp_UserOfflineSmall Offline

Does anybody know if it’s possible for a gunsmith to modify a standard ribbed barrel shroud to accept b-square rings? Essentially, to add vent ribbing to an un-ribbed shroud?

August 4, 2014
10:22 pm
Avatar
lonwolf93
Lancaster Pa
Member
Forum Posts: 1566
Member Since:
April 20, 2010
sp_UserOfflineSmall Offline

Sam, contact Eric at EWK Arms he may be willing to help you. Or contact Dan Wesson Firearms in Norwich.

"The lion and the tiger may be more powerful, but the Wolf does not perform in the circus"

August 5, 2014
12:18 am
Avatar
Steve

Dan's Club
Forum Posts: 10330
Member Since:
March 2, 2008
sp_UserOfflineSmall Offline

Sam said

Does anybody know if it’s possible for a gunsmith to modify a standard ribbed barrel shroud to accept b-square rings? Essentially, to add vent ribbing to an un-ribbed shroud?

Are you asking about the bSquare DW clamp on mount? Or a set of rings only?

Either way, I’d say that ANYTHING may be possible. I once worked with a Construction Foreman whose motto was:

“I can do whatever you want, just takes Time and Money”. To quote directly, “If you have the Money, I have the Time”

I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.

George Carlin

August 5, 2014
12:40 pm
Avatar
Sam
Member
Forum Posts: 2
Member Since:
August 4, 2014
sp_UserOfflineSmall Offline

Thanks, Ionwolf, I’ll get in contact with them.

And, Steve CT, I’m wondering if it’s safely possible to mill out a standard rib shroud to accept the b-square DW clamps.

Note to self, need more money

April 3, 2015
11:02 pm
Avatar
Zedbra
Squamish, British Columbia

Dan's Club
Forum Posts: 491
Member Since:
January 17, 2015
sp_UserOfflineSmall Offline

Thanks for this thread, now I hunt for the parts; I was hoping to not drill and tap a shroud.

June 23, 2015
7:34 pm
Avatar
snake-eye
Fort Myers, Florida

Dan's Club
Forum Posts: 1309
Member Since:
December 5, 2008
sp_UserOfflineSmall Offline

Just to add to the reference information – the Buehler, Burris and Wiegand drill & tap mounts all use the same screw pattern – so they are interchangeable if you have a shroud already drilled for one, the others will also fit. Just incase you want to change.

September 3, 2015
9:45 pm
Avatar
super357guy
Member
Forum Posts: 108
Member Since:
August 9, 2015
sp_UserOfflineSmall Offline

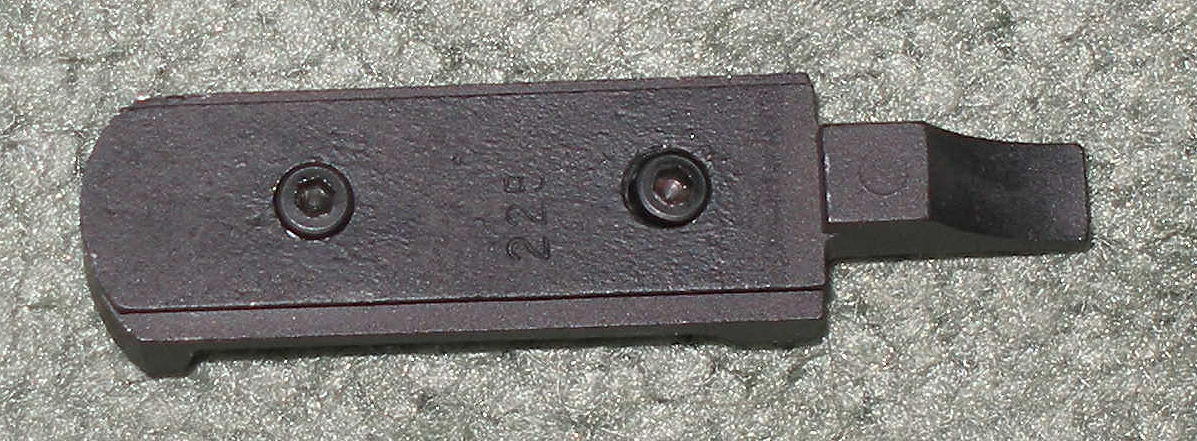

Here is one that came on my DW 357 SuperMag, I was told it is a Tompson Contender insta sight mount. But it works for other mounts as well.dw-scope-mount-2.jpgImage Enlarger

February 2, 2016
11:26 am
Avatar
Texgun
Arlington, Texas USA
Member
Forum Posts: 10
Member Since:
October 12, 2015
sp_UserOfflineSmall Offline

Thanks. I have been thinking about a holographic sight.

February 22, 2016
1:29 pm
Avatar
Prescut
the southwest and the free state of AZ
Member
Forum Posts: 99
Member Since:
December 19, 2015
sp_UserOfflineSmall Offline
February 24, 2016
10:47 am
Avatar
Zedbra
Squamish, British Columbia

Dan's Club
Forum Posts: 491
Member Since:
January 17, 2015
sp_UserOfflineSmall Offline

I did finally manage to trade for some scope rings and purchased a nice used 2x Swift scope only to get the scope and the elevation wouldn’t adjust.  I just sent the scope in for warranty but they told me they only have silver ones remaining to replace mine – they don’t even offer nice gloss anymore.



http://i459.photobucket.com/albums/qq314/Zedbra/MIsc/Private/2016-01-09%2011.39.48_zpsyqm911nv.jpgImage Enlarger

March 31, 2016
2:03 am
Avatar
DW22AZ
Member
Forum Posts: 9
Member Since:
March 31, 2016
sp_UserOfflineSmall Offline
March 27, 2017
10:10 am
Avatar
Chuck in Indiana
Member
Forum Posts: 85
Member Since:
April 28, 2014
sp_UserOfflineSmall Offline

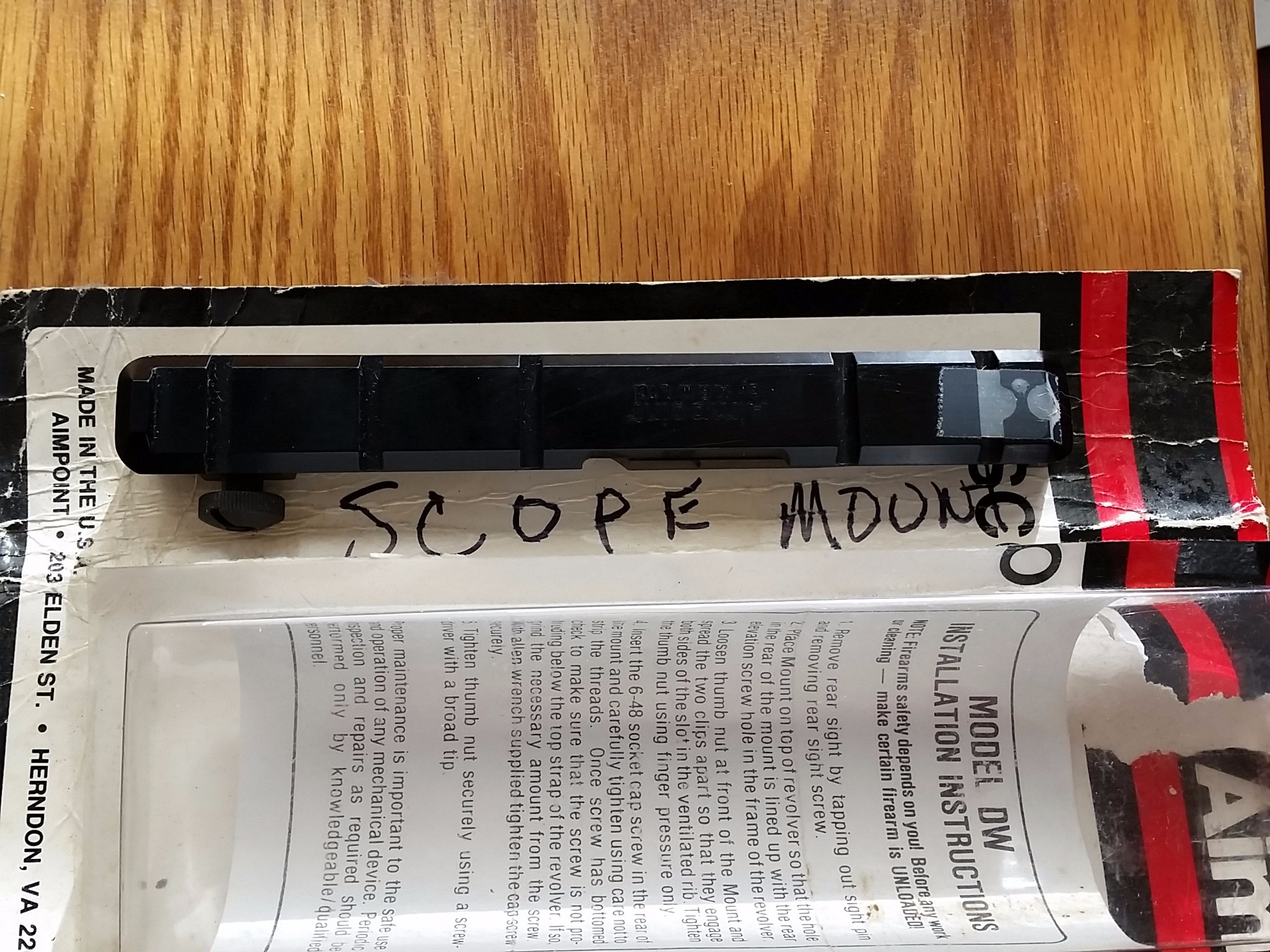

I thought this might be interesting. This scope mount came with a “shooter” I picked up a few years ago. I’ve never mounted it.. I don’t have a scope.. but it looks to me that it will work.

It’s *different* than the one in this thread. That surprises me.

Edit: It appears the other has screws to the rib, and this one just clamps on. Still have to remove the rear sight, though.



20170327_094355.jpgImage Enlarger

20170327_094323.jpgImage Enlarger

April 17, 2017
9:24 am
Avatar
snake-eye
Fort Myers, Florida

Dan's Club
Forum Posts: 1309
Member Since:
December 5, 2008
sp_UserOfflineSmall Offline

Update:   Weigand no longer produces the scope mount for Dan Wesson revolvers due to “very poor sales”.

This leaves the factory D&T mount as the only one currently produced.

May 23, 2017
12:03 pm
Avatar
Roberto
Member
Forum Posts: 3
Member Since:
February 28, 2016
sp_UserOfflineSmall Offline

SCOPE UPDATE FOR 2017.  Despite the scarcity of the old scope rings and scope attachment systems specific to Dan Wesson revolvers, there are ways to mount scopes with what is readily available today.

WessonThree.JPGImage Enlarger

WessonTwo.JPGImage Enlarger

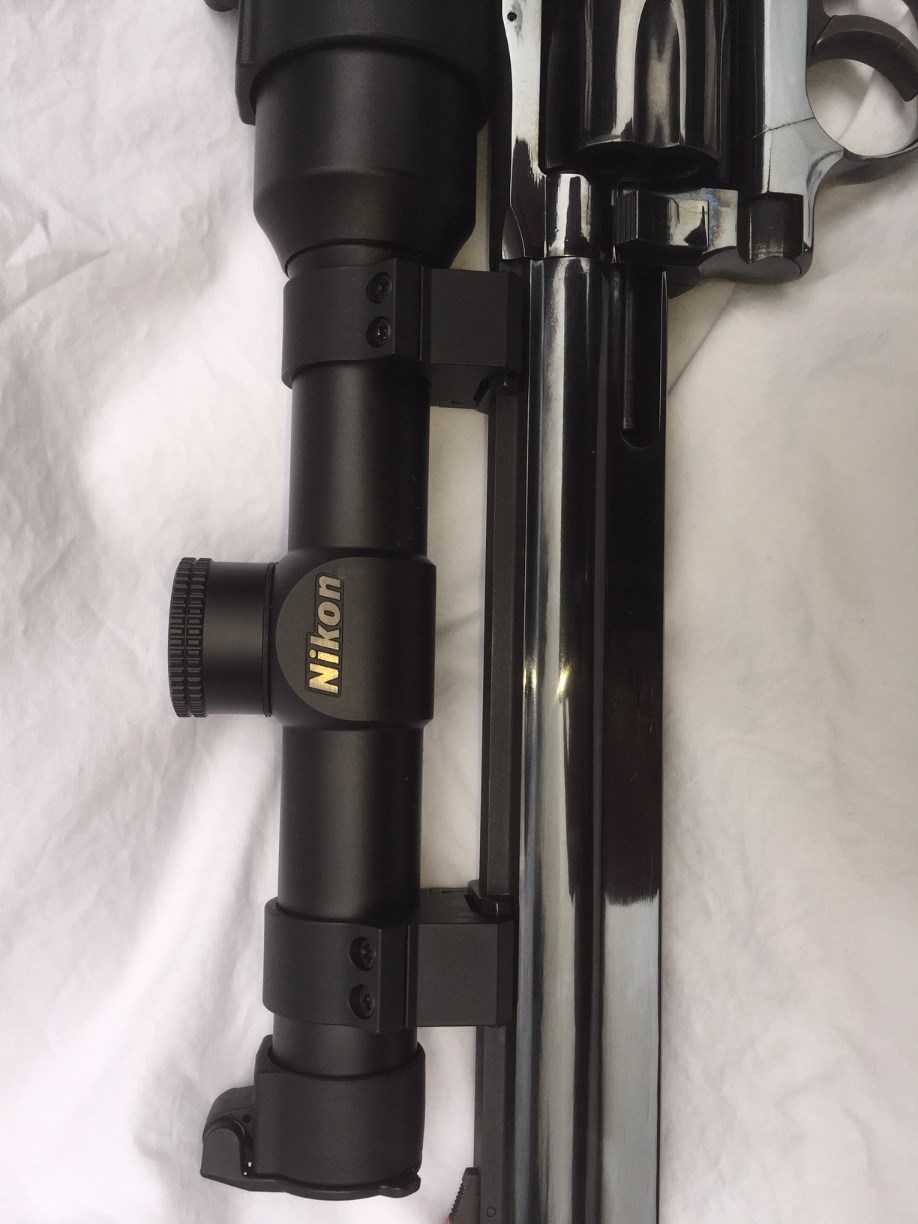

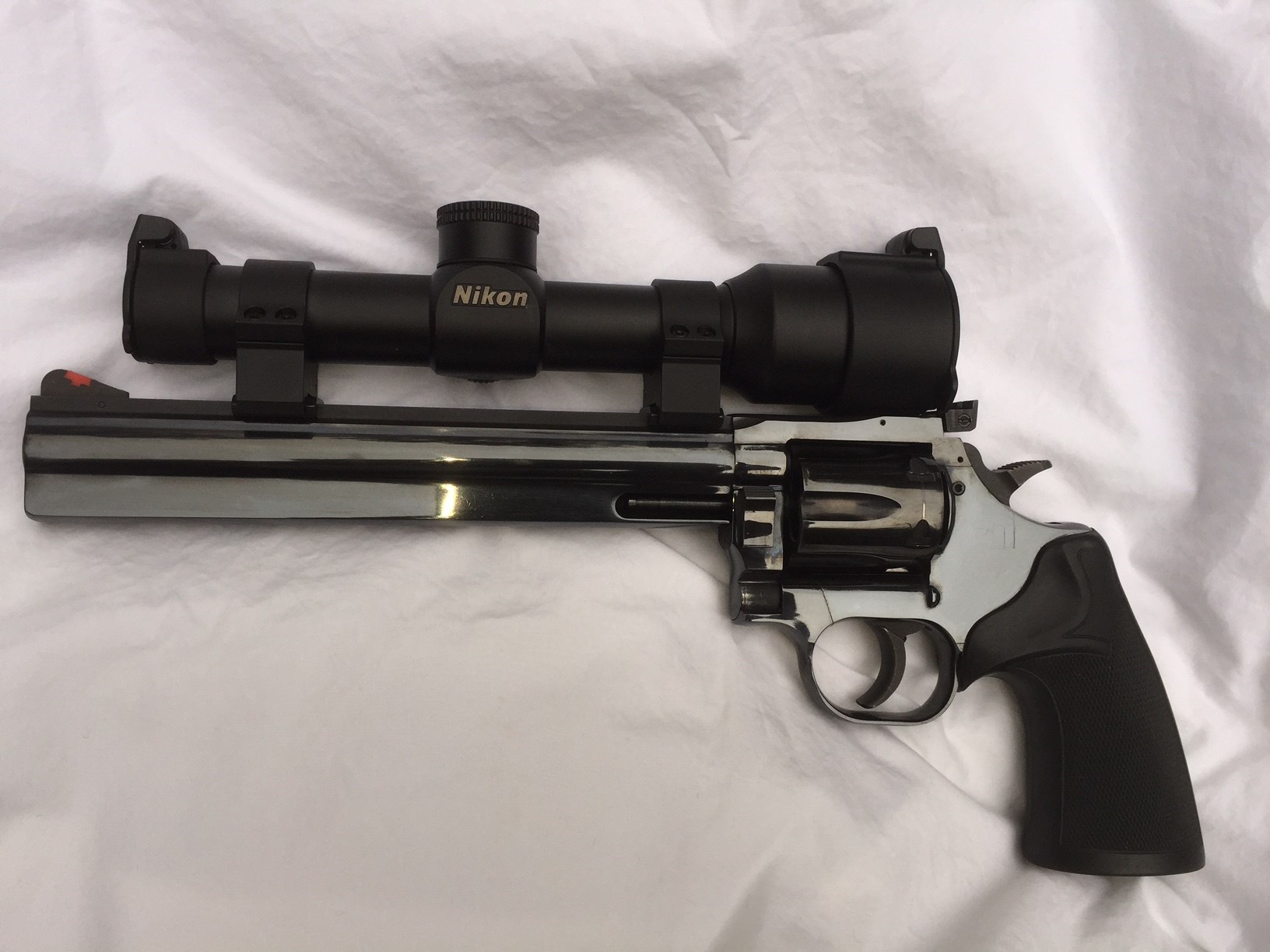

In this example, I used an 8 inch barrel shroud from my 357 magnum.  It has a solid rib, so the mounts were tapped into slight indentations cut into the rib. The scope is a Nikon Handgun 2 X 20 Force XR, about $200. The rings and mount are Leopold PRW, with bases, about $100. The scope is mounted as close to the barrel as possible, yet everything clears the frame. As you know, doing this on a Dan Wesson is much cleaner than just about any other revolver because the gun itself is not compromised and switching barrels leaves the gun the same as it left the factory.  With this system, the rear iron sights are left exactly where they are, facilitating the ease of switching barrels. Obviously, you want to use the best gunsmith you can find.  I was fortunate to have the services of one of the very best smiths in the state of Texas.

June 22, 2017
10:25 am
Avatar
Andrew1220
Member
Forum Posts: 154
Member Since:
August 8, 2016
sp_UserOfflineSmall Offline

I’ve started looking for clamp-on scope mounts for my 744 and found a guy selling a DW 41 mag revolver with the 2 piece B-square clamp on scope mount along with a Leupold scope:

http://www.gunbroker.com/item/657504403

I messaged the seller to see if he’s willing to sell the mount and possibly the scope separately.

I saw in the original post of this thread that the B-square 2 piece mount isn’t as solid? Anyone have one of these? Any pros/cons? Thanks.

Andrew

June 22, 2017
10:43 am
Avatar
Stinger
Member
Forum Posts: 2299
Member Since:
February 16, 2016
sp_UserOfflineSmall Offline

I wouldn’t use clamp-on mounts on a .44 Magnum.
