The official DW scope mount thread
November 28, 2010
1:45 pm
Avatar
SHOOTIST357
Colorado Springs, CO

Supporter

Range Officer
Forum Posts: 4788
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline

Ok, the time has come to document all the scope mount options available for DW owners.  I’ll try to give as mucinfo as I have for each one.  Some of these mounts have been out of production for several years, so don’t expect to find them anytime soon.

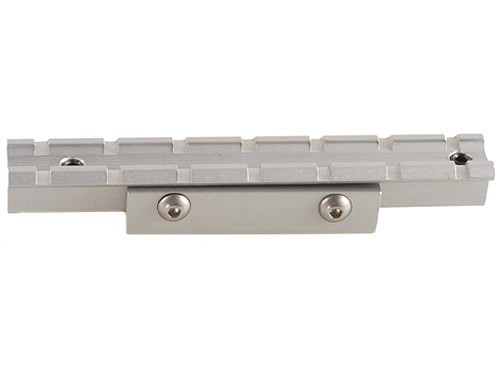

I’ll start out with clamp-on mounts for all the vent rib models.  The most popular, and probably the least expensive is the Full-length B-square clamp.  This simply clamps full length on the vent rib with two or three allen screws which go through the mount.  Built like a tank and works well, but really bulky looking.

Image Enlarger

Here is a pic of it mounted….

Image Enlarger

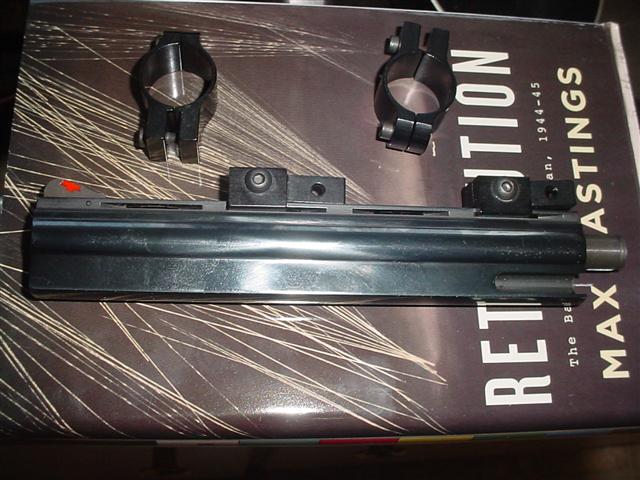

Next is an older B-square–this is a “2 piece” mount–not quite as solid as the single rail, but still serves the purpose.

Image Enlarger

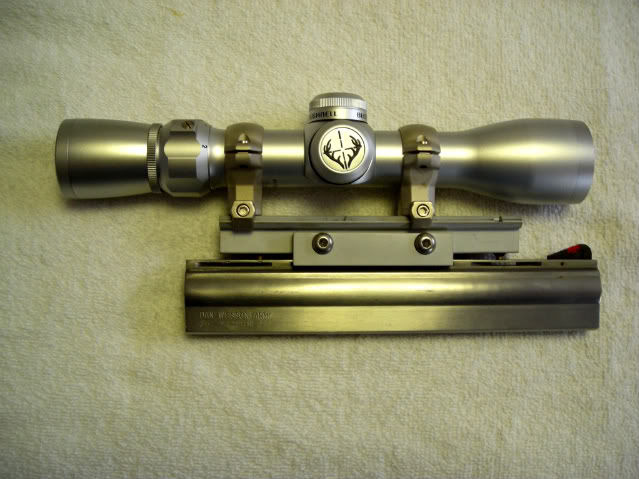

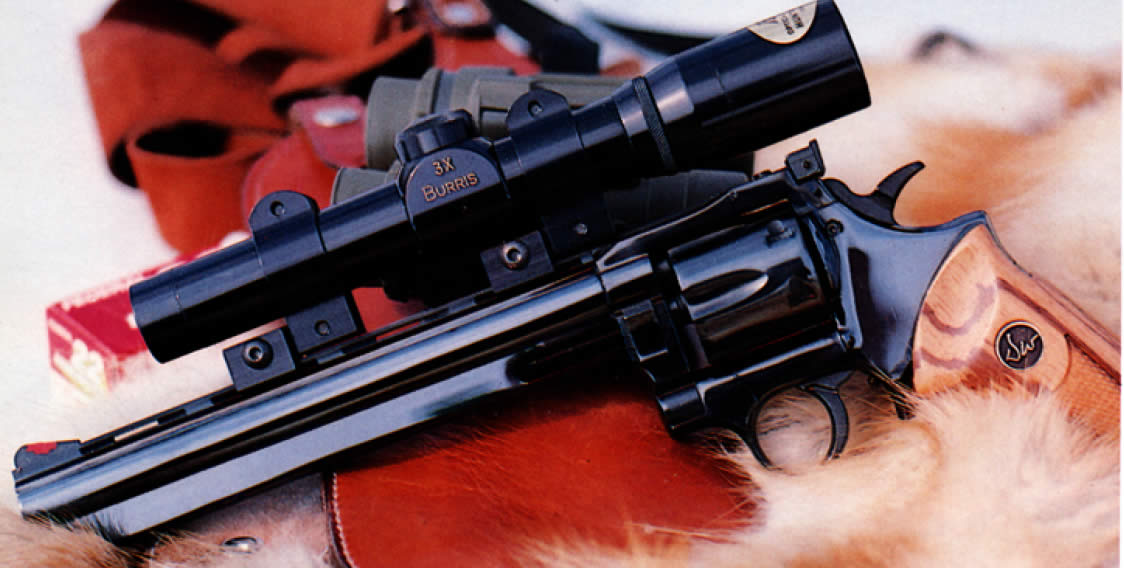

Here’s a really nice pic of one mounted.

Image Enlarger

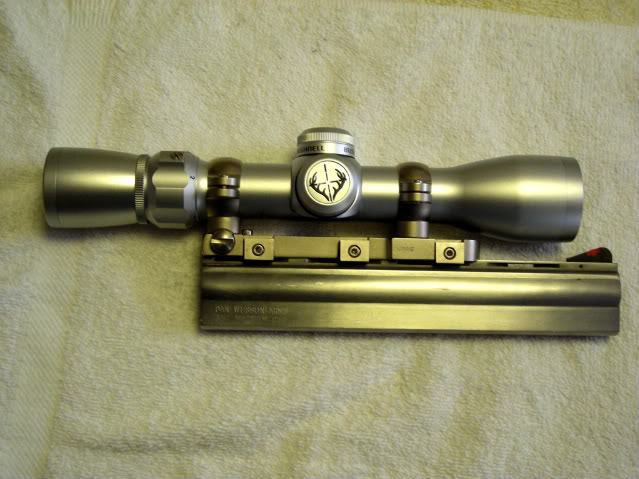

If you can find one, and if you have a little more money…. The Burris rib clamp is a very nice mount with a beautiful finish.  Available in silver and blue.  This mount is also rock solid and a little better looking than the B-square.

Image Enlarger

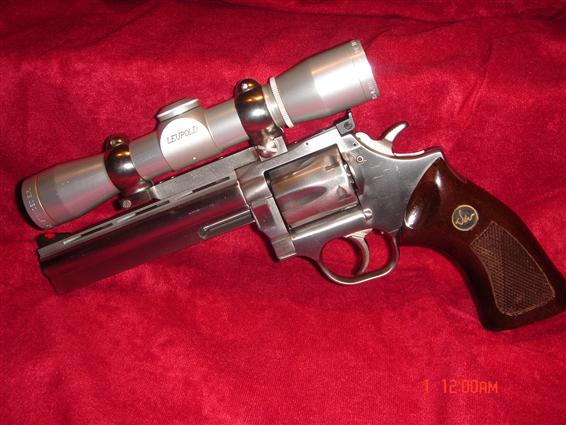

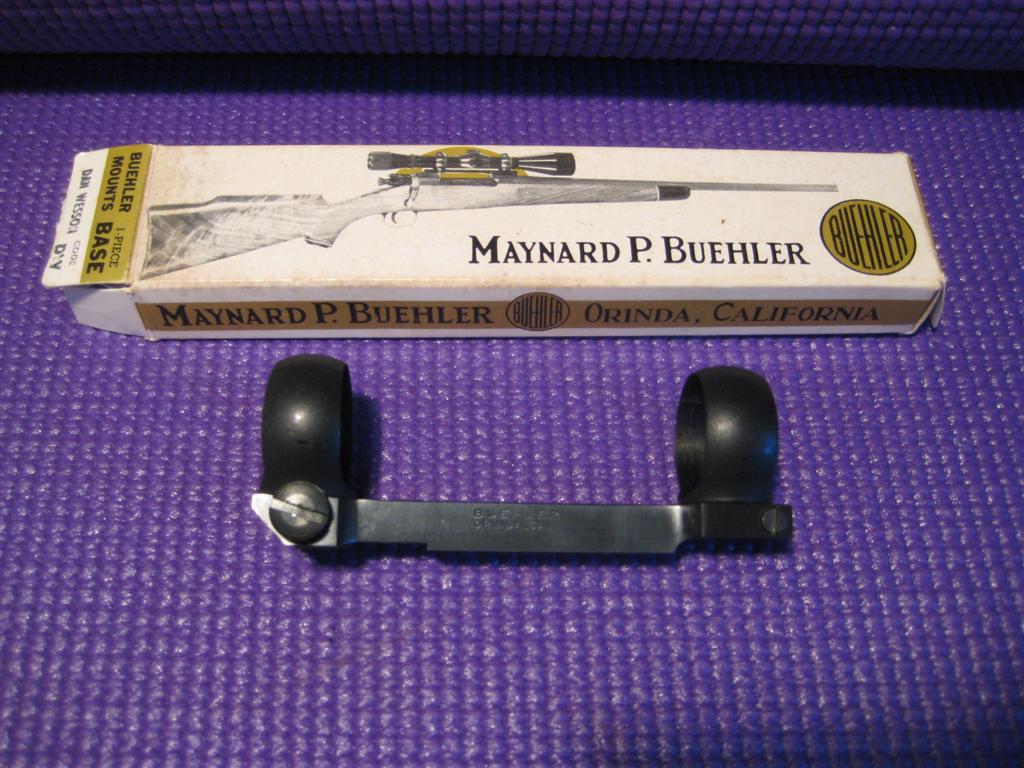

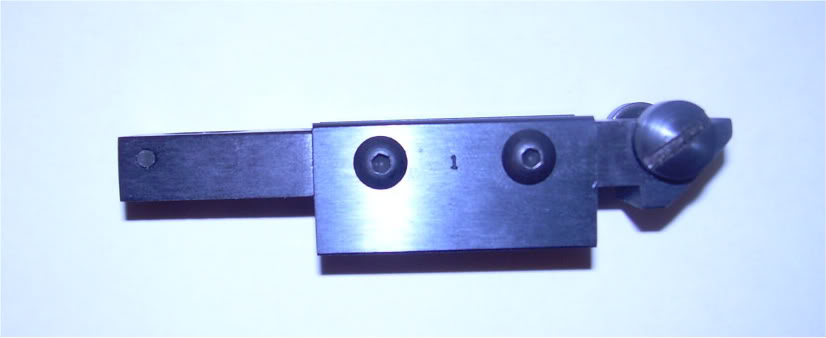

If you REALLY look hard, you may be able to find one of the original Buehler frame clamps.  Unlike the other mounts, this one replaces the rear sight and clamps over the topstrap.  Rock solid and allows barrel changes without removing the scope.

Image Enlarger

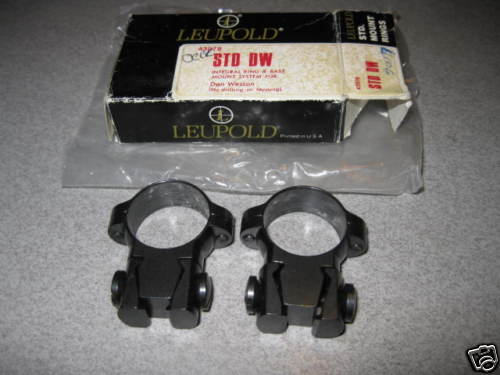

For all of us guys with more money than brains at times… there is the Leupold rib clamps.  One piece base/rings that clamp right on the rib.  Beautiful rings, well made, and expensive–good luck finding a set…

Image Enlarger

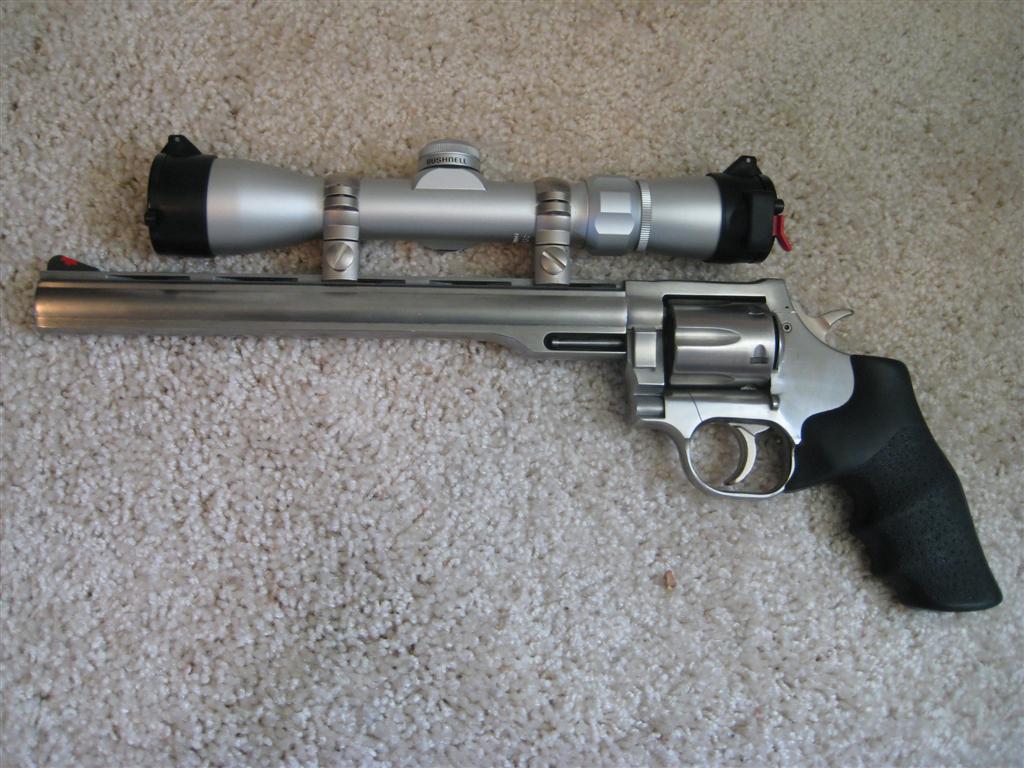

They look even better mounted….

Image Enlarger

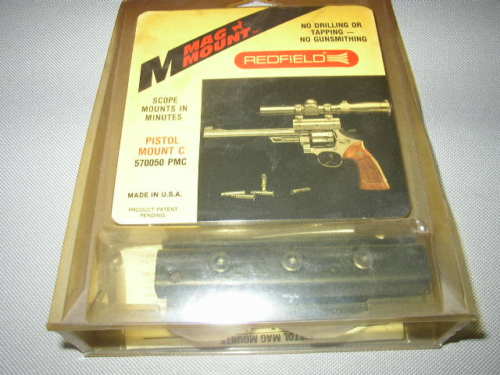

Another hard to find item–Redfield briefly made mounts for DW’s.  Similiar to the Buehler clamp, theis mount also locks over the topstrap.

Image Enlarger

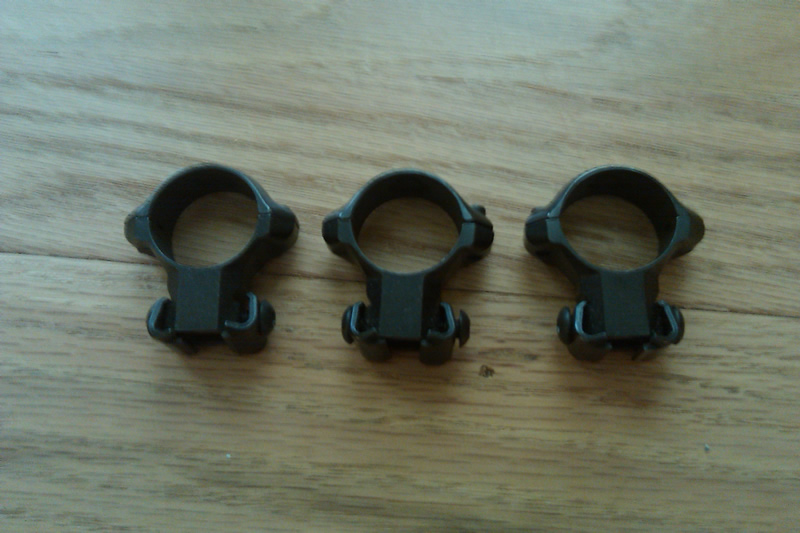

And then there are mounts I can’t identify… These are rib clamps similiar to the Leupolds.  Millett also made mounts similiar.

Image Enlarger

OK, time to move on to the Drill/Tap mounts.  Once again, som eof these are long out of production…  Here is my oldest mount–an original Buehler.   This is a very slim mount and is going to end up on a DW 22 one of these days.

Image Enlarger

Here’s a shot of one mounted–possibly a more modern version…

Image Enlarger

And of course the original ad…

Image Enlarger

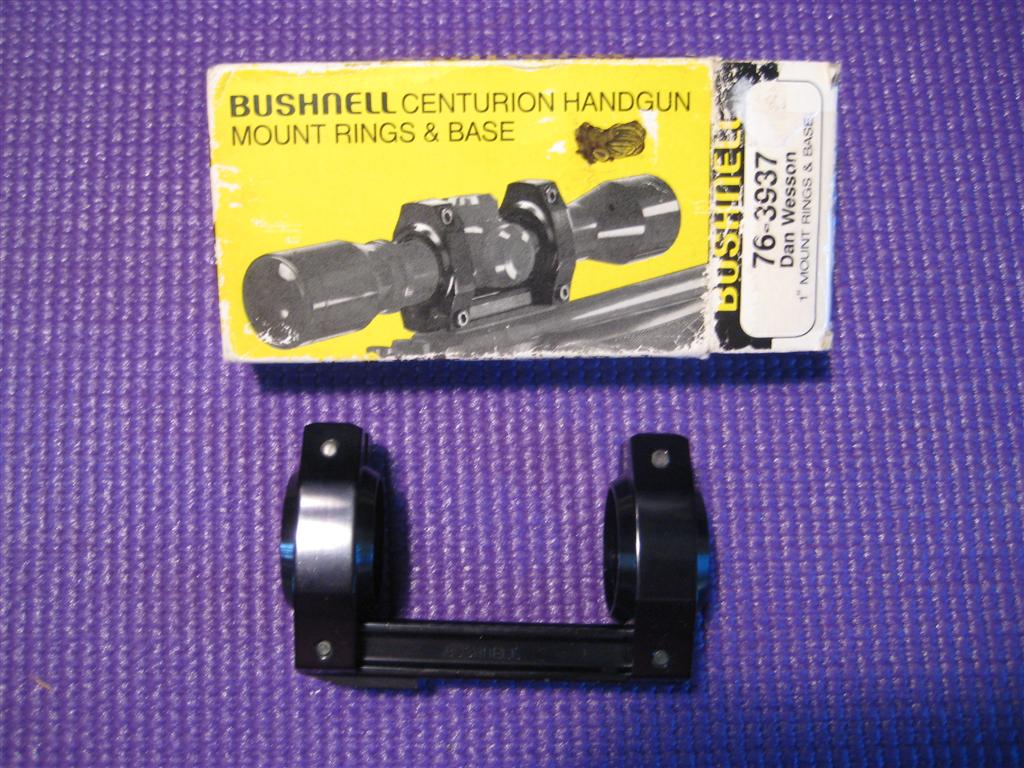

Bushnell made a lot of mounts back in the 1970’s and early eighties.  This one also replaces the rear sight and requires drilling/tapping the top strap.  Solid aluminum and very light.

Image Enlarger

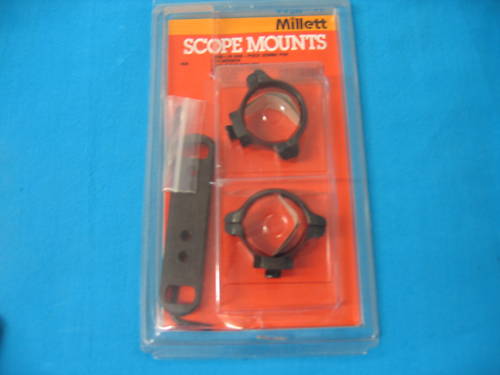

Millett made a standard drill/tap mount–nothing special to say…

Image Enlarger

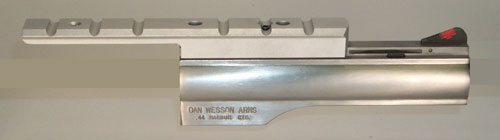

Weigand mounts currently make a nice mount for the DW’s–check it out.

Image Enlarger

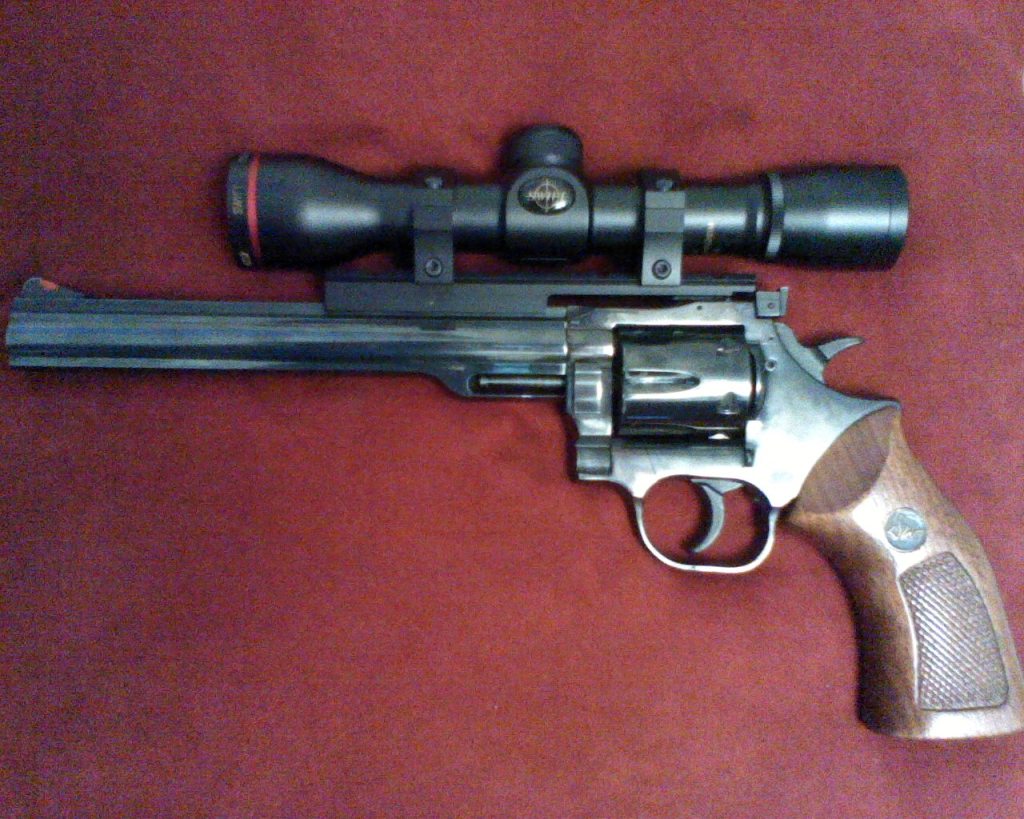

Here is a better pic of it mouned.

Image Enlarger

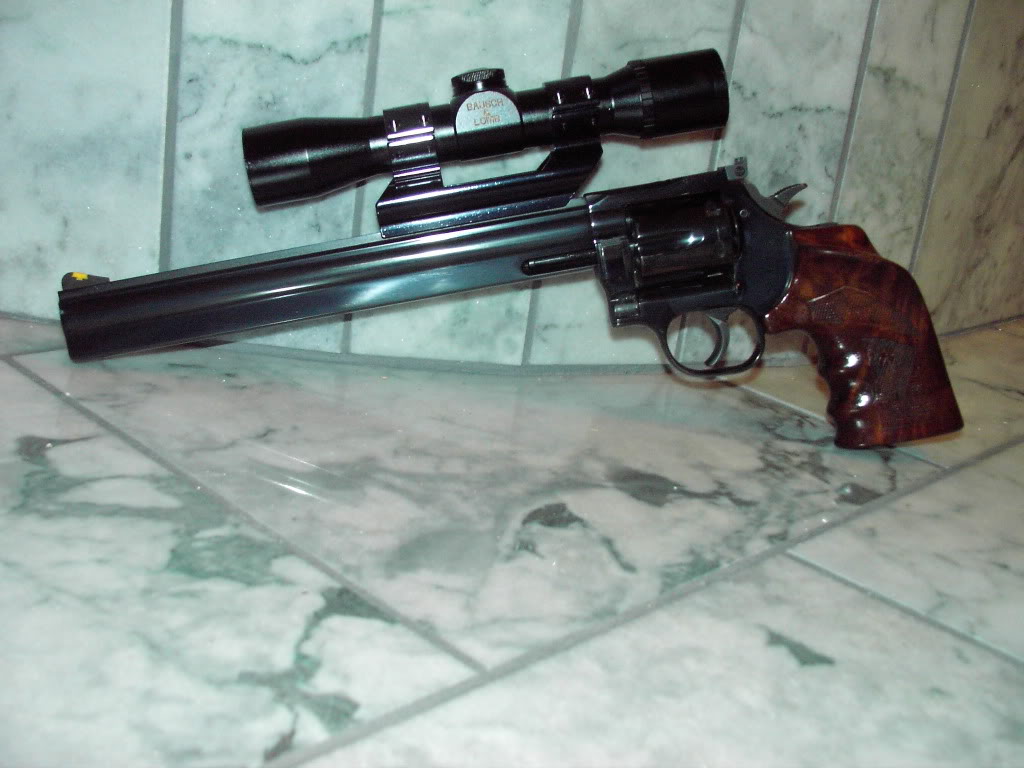

An oldie but agoodie– The original Holden Ironsighter see-through scope system.  These were used on all kinds of guns and were well made.  Scope sits a little high with them.

Image Enlarger

Warne currently makes a weaver rail for the 445’s.  It is model Maxima MSS 630, and takes standard Warne rings.

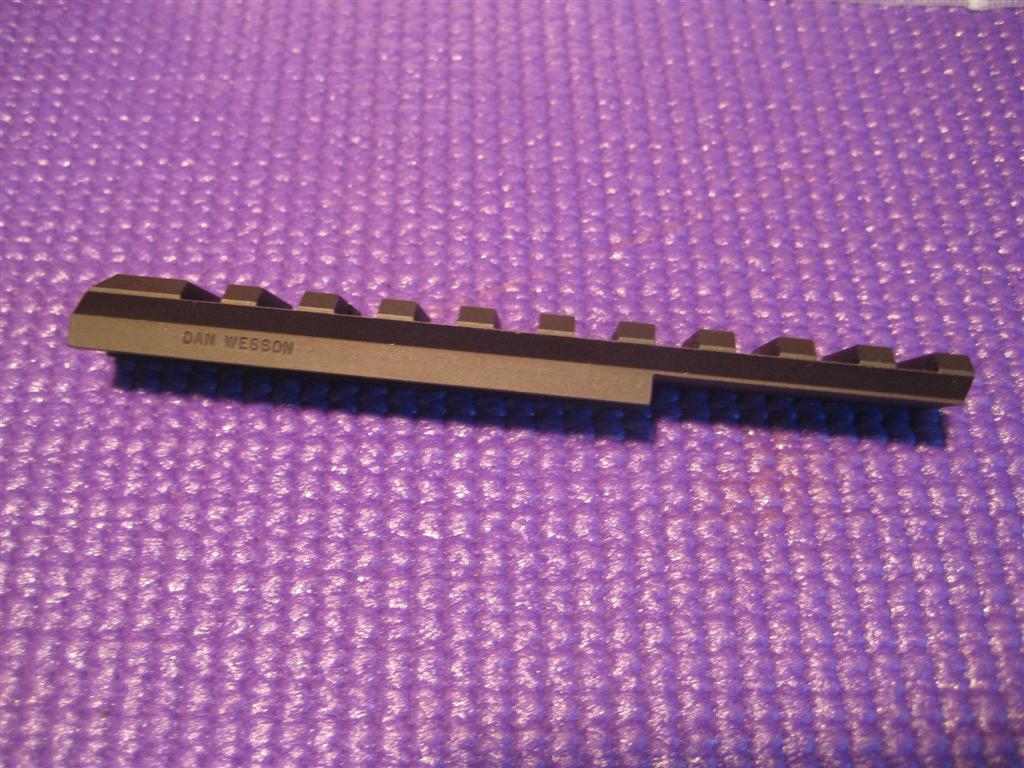

And finally…. Current production drill/tap from CZ/DW…

Image Enlarger

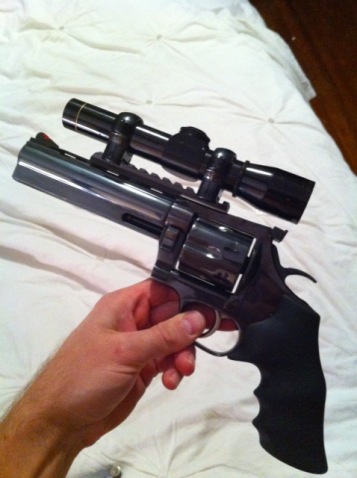

and one of the CZ/DW mounts installed…



Here is a mount I can't identify–showed up on Gunbroker on this W-12.  Looks to be a solid mount, wish we had some info.

Image Enlarger

That’s all I have for now.  If anybody has any other mounts I haven’t included, please let me know and I’ll insert them into the thread.

I do have one other mounting system… but right now it is CLASSIFIED Laugh

SHOOT

November 28, 2010
2:01 pm
Avatar
Jody
Salem, Virginia
Admin
Forum Posts: 6167
Member Since:
January 22, 2008
sp_UserOfflineSmall Offline

SHOOT, I think you hit all the mounts that I'm aware of.  Great post!


November 28, 2010
2:47 pm
Avatar
Pinetor
Jackson MS, USA
Member
Forum Posts: 1569
Member Since:
May 17, 2010
sp_UserOfflineSmall Offline

Great post! I do want a scope some day.. but I dont want to harm an otherwise good shroud, nor am I willing to mar my frame. Does the CZ DW, mount require a tap into the frame; or just the shroud?

Soap Box, Ballot Box, Ammo Box

in that order.

4 Monson Model 15's

1 Palmer FB 15

1 Rossi 357 Model 92 (lever)

1 CZ 75B

November 28, 2010
4:29 pm
Avatar
Charger Fan
Northern Utah

Supporter
Forum Posts: 10513
Member Since:
January 24, 2009
sp_UserOfflineSmall Offline

Excellent post Shoot, this thread will be a very handy reference to have at theDWF Sign

Be yourself, everyone else is already taken.

November 28, 2010
4:34 pm
Avatar
SHOOTIST357
Colorado Springs, CO

Supporter

Range Officer
Forum Posts: 4788
Member Since:
May 2, 2009
sp_UserOfflineSmall Offline

Pinetor said:

Great post! I do want a scope some day.. but I dont want to harm an otherwise good shroud, nor am I willing to mar my frame. Does the CZ DW, mount require a tap into the frame; or just the shroud?


The CZ/DW mount only goes into the shroud.  I have a new one in Blue that I am not using; in fact, I may be in the market for a SS one if anybody is interested in a swap.

SHOOT

November 29, 2010
4:56 am
Avatar
mox-ct
Salem, CT
Member
Forum Posts: 969
Member Since:
November 14, 2009
sp_UserOfflineSmall Offline

Shoot,

Nice job.  Some really nice scope mounts also.Drool

Happyness is a Hot DW and a pile of used brass!!! Rich

November 29, 2010
12:14 pm
Avatar
cobra_eye
Member
Forum Posts: 11
Member Since:
October 31, 2010
sp_UserOfflineSmall Offline

Shoot

Really informative and also very much appreciated. Clears up a lot of questions for me and hopefully others.



Cobra_Eye

January 26, 2011
10:57 am
Avatar
plabels
Member
Forum Posts: 11
Member Since:
December 29, 2010
sp_UserOfflineSmall Offline

Shoot, great post & thanks for the time you took sharing it with us. Wish you wood have told me about it in your reply to my post.    Problen I'm having is I have the Burris – 410385. It will not work on my 744SS. It looks exactly like the one you have posted.  Did DW make different height ribs for this model?

Thanks ,



Pete LaBella                          Proud To Be An American

January 26, 2011
11:15 am
Avatar
plabels
Member
Forum Posts: 11
Member Since:
December 29, 2010
sp_UserOfflineSmall Offline

Oops, sorry for the spelling.

Pete

January 26, 2011
7:45 pm
Avatar
Steve

Dan's Club
Forum Posts: 10330
Member Since:
March 2, 2008
sp_UserOfflineSmall Offline

Pete, the one pictured is actually mine. I never got it to work on a 744. The dimensions of the top rib were just too different from the 715 shroud it is mounted on currently.

I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.

George Carlin

January 28, 2011
12:14 pm
Avatar
IHMSA80x80
Member
Forum Posts: 2692
Member Since:
April 25, 2008
sp_UserOfflineSmall Offline

This one came from the factory on the Hunter Models,  a Burris dovetail mount.

Image Enlarger

The Savantist

August 23, 2011
8:14 pm
Avatar
Gary J
Georgia
Member
Forum Posts: 828
Member Since:
May 3, 2011
sp_UserOfflineSmall Offline

Shootist357 thanks so much for putting this data together. It is very helpful.

August 26, 2011
9:03 pm
Avatar
deluxacman
central florida
Member
Forum Posts: 53
Member Since:
June 4, 2011
sp_UserOfflineSmall Offline

Hey Shoot,

Thanks for another most excellent post. Great learning and reference for new guys like mecool-pics. I appreciate your time and knowledge.



Jeffdwf-sign

April 18, 2013
6:30 pm
Avatar
rwsem
SOWELA (Southwest Louisiana)

Supporter

Dan's Club
Forum Posts: 4474
Member Since:
February 22, 2009
sp_UserOfflineSmall Offline

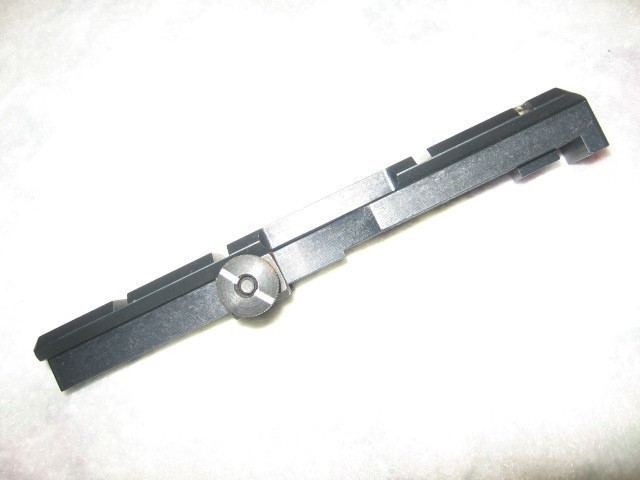

I’m waiting for delivery of two “Aimpoint” mounts which were described as DWs.  We’ll see when they get here.

scope-mount.jpgImage Enlarger

Technically, the glass is always full; half liquid, half air....

April 18, 2013
8:45 pm
Avatar
Steve

Dan's Club
Forum Posts: 10330
Member Since:
March 2, 2008
sp_UserOfflineSmall Offline

Brian (lonwolf93) has suggested that this topic be pinned to the top, I think this is a great suggestion, so …

I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.

George Carlin

April 18, 2013
10:59 pm
Avatar
ar-tex
Dallas- Fort Worth Texas

Supporter
Forum Posts: 434
Member Since:
October 11, 2009
sp_UserOfflineSmall Offline

Shoot,   Great job and nice post.  Artex   Ps welcome back

April 19, 2013
6:59 pm
Avatar
Steve

Dan's Club
Forum Posts: 10330
Member Since:
March 2, 2008
sp_UserOfflineSmall Offline

Here’s one more, possibly the rarest one of all, the EWK Clamp Mount w/picatinny rail. It looks a little funky with the long rail under a Fastfire. Inspired by the Beuhler mount but does not require removing the rear sight. Not sure how many were made, but I’m pretty sure that number is well “south” of 20.

MEMO TO SELF: get a nice little 2x rimfire scope and shoot this on a .22


I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.

George Carlin

July 23, 2013
8:59 pm
Avatar
Maxwell 'Arlen' Silver

Supporter
Forum Posts: 489
Member Since:
June 25, 2013
sp_UserOfflineSmall Offline

I knew there was a reason I came to this site.

Just purchased a 357 that had a scope and I needed to find the mounts used.

Turns out the scope and mounts are both Leupold and here the mounts turn out to be the Leupold rib clamps. The scope Leupold M8 2X EER.



A tip of the hat for the Shootist35.





Endeavor to persevere,
Press on regardless.
Need little, want less, love more.

July 23, 2013
11:37 pm
Avatar
Steve

Dan's Club
Forum Posts: 10330
Member Since:
March 2, 2008
sp_UserOfflineSmall Offline

The Leupold Rib clamps are pretty much the Holy Grail of DW Mounts/Rings.

You done Good!

I went to a bookstore and asked the saleswoman "Were is the Self Help Section?" She said if she told me, it would defeat the purpose.

George Carlin

February 22, 2014
6:12 pm
Avatar
bandit12
ohio
Member
Forum Posts: 21
Member Since:
February 18, 2014
sp_UserOfflineSmall Offline

Well I’ve had a B-Square mount on my 744 pretty much since I’ve started shooting it and after all these years I find out it was mounted wrong.

I was thinking of removing it and now I probably will, if I need to put it back on I can do it right. At least I’m not the only one that did it, I copied a friend’s 744 set up except his is a scope and mine is a red dot.

I guess that I found this site to refresh some of the veteran threads, lol.
