I have this idea that if I have a.22 revolver, I can convert it to a .32 Magnum by boring the cylinder and barrel.
The only hang up I see is with the firing pin strike location.
Ive had conversations with someone that has more experience than I that this can be corrected someway.
Does anyone know if it’s possible?
Thanks in advance.
Supporter
Range Officer
Moderators
DWF Supporters
Dans Club
December 4, 2011
Offline
The firing pin will need to be replaced, but the barrel will be your biggest problem. The frames have different threads to prevent the a code tal mix up of cali ers. Basically to prevent someone from trying to shoot a 32 down a 22 diameter tube. Now you could get a custom barrel tube made, but that's going to be costly and time consuming. Also, the 22 cylinder is shorter than the 32 a d 357 mag so you'll need a new one of those also.
So my answer is yes, it CAN be done BUT, the cost and complexity makes me wonder if it SHOULD be done. For what you'll spend, why not put that money towards a different gun?
Anything worth doing is worth doing well.
My father
If a man designed it, and a man built it, then a man can fix it.
My grandfather
November 10, 2018
Offline
So what do you mean by reached? I think I have the barrel issue figured out.
Supporter
Range Officer
Moderators
DWF Supporters
Dans Club
December 4, 2011
Offline
Replaced. Sorry auto correct changed it and I didn't catch it.
Anything worth doing is worth doing well.
My father
If a man designed it, and a man built it, then a man can fix it.
My grandfather
November 10, 2018
Offline
So I just need to buy a centerfire firing pin and put it in my 22 LR frame?
Supporter
Range Officer
Moderators
DWF Supporters
Dans Club
December 4, 2011
Offline
For starters. The barrel is your biggest issue. You can't just scew in a 32 barrel tube. You'll need to have one made to fit your frame threads. Also, the cylinder is shorter on 22s than in the 33 and 357s, so you'll need one of those too.
Anything worth doing is worth doing well.
My father
If a man designed it, and a man built it, then a man can fix it.
My grandfather
November 10, 2018
Offline
So I sent my 22 LR barrel to get reamed and rebored to 32 cal. and I sent my cylinder to a different guy to get reamed to 32 mag and have it back. It is long enough.
I had the barrel guy redo a S&W 617 barrel and it shoots great.
I don’t have the barrel back yet as there is a 3 month backlog.
I believe both barrel and cylinder will work. I just need to figure out the firing pin problem, I think?
December 26, 2018
Offline
xringchaser said
So I sent my 22 LR barrel to get reamed and rebored to 32 cal. and I sent my cylinder to a different guy to get reamed to 32 mag and have it back. It is long enough.I had the barrel guy redo a S&W 617 barrel and it shoots great.
I don’t have the barrel back yet as there is a 3 month backlog.
I believe both barrel and cylinder will work. I just need to figure out the firing pin problem, I think?
What did the barrel guy do to the 617, was it a caliber conversion too?
August 29, 2009
Offline
The firing pin is positioned in a different location on the .22 vs. a centerfire caliber. It's actually the same firing pin on both the rim and centerfire calibers, it's just positioned in the frame higher toward the top strap. I'm quite sure you cannot do a conversion.
November 10, 2018
Offline
The S&W 617 is a .22 LR and he converted it to a .32 cal. I’ve had this done twice, once by a different guy that opened the bore up and inserted a liner and once by the other guy that rebored the barrel to 32 cal. Both shoot great.
I knew I had to use a different frame in the S&W, so I sourced a S&W 66 frame.
This one I was told I could use the same frame, as all the small frames were the same. Maybe I got some bad information?
Supporter
Range Officer
Moderators
DWF Supporters
Dans Club
December 4, 2011
Offline
Why didn't you just get a 32 to begin with?
Anything worth doing is worth doing well.
My father
If a man designed it, and a man built it, then a man can fix it.
My grandfather
November 10, 2018
Offline
August 29, 2009
Offline
xringchaser said
The S&W 617 is a .22 LR and he converted it to a .32 cal. I’ve had this done twice, once by a different guy that opened the bore up and inserted a liner and once by the other guy that rebored the barrel to 32 cal. Both shoot great.I knew I had to use a different frame in the S&W, so I sourced a S&W 66 frame.
This one I was told I could use the same frame, as all the small frames were the same. Maybe I got some bad information?
Not sure there. I can post up a photo of both when I have a minute if you want.
November 10, 2018
Offline
Yes please, anything would be helpful.
January 7, 2018
Offline
Are you meaning 32 H&R Magnum?
November 10, 2018
Offline
August 29, 2009
Offline

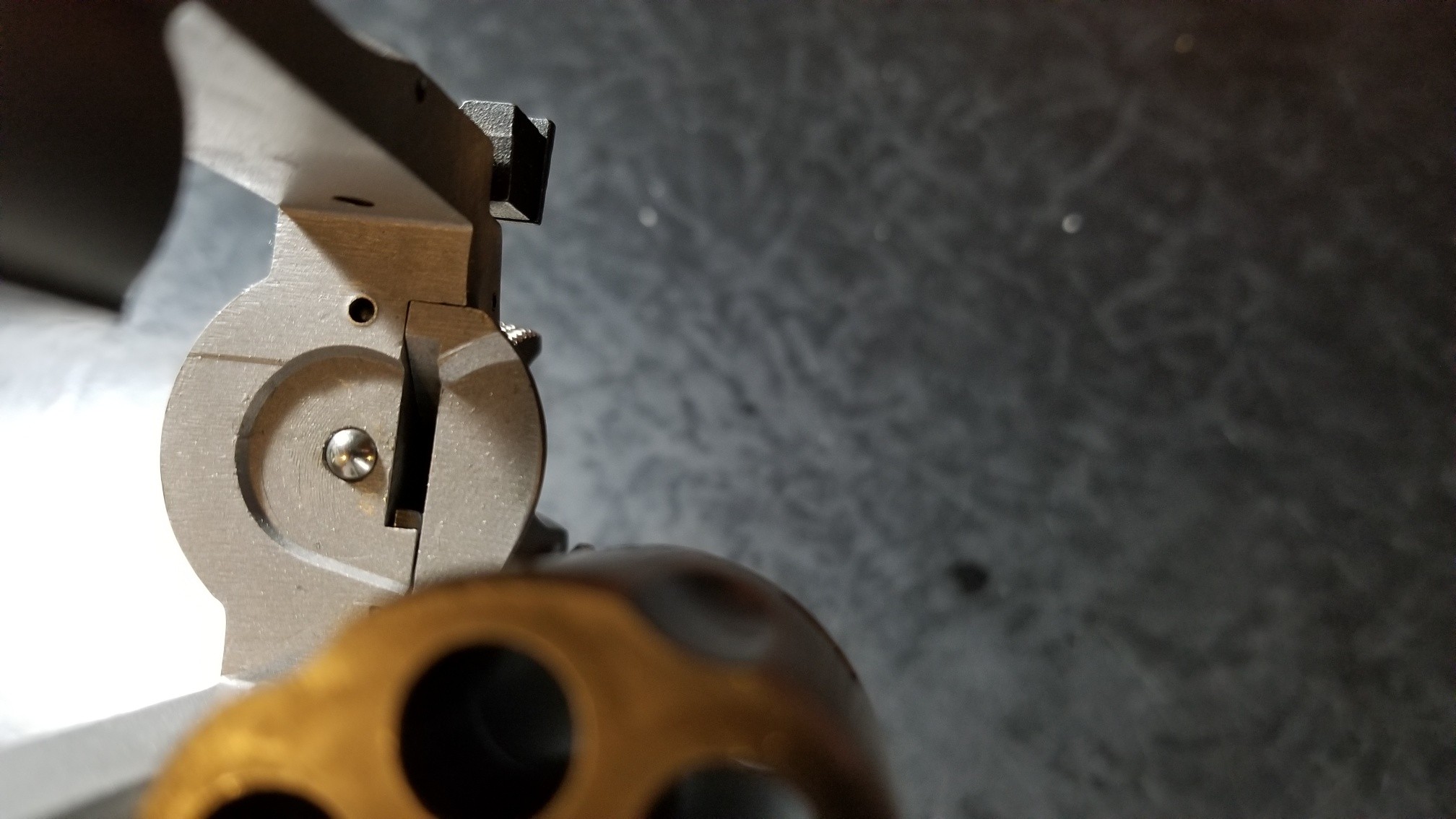

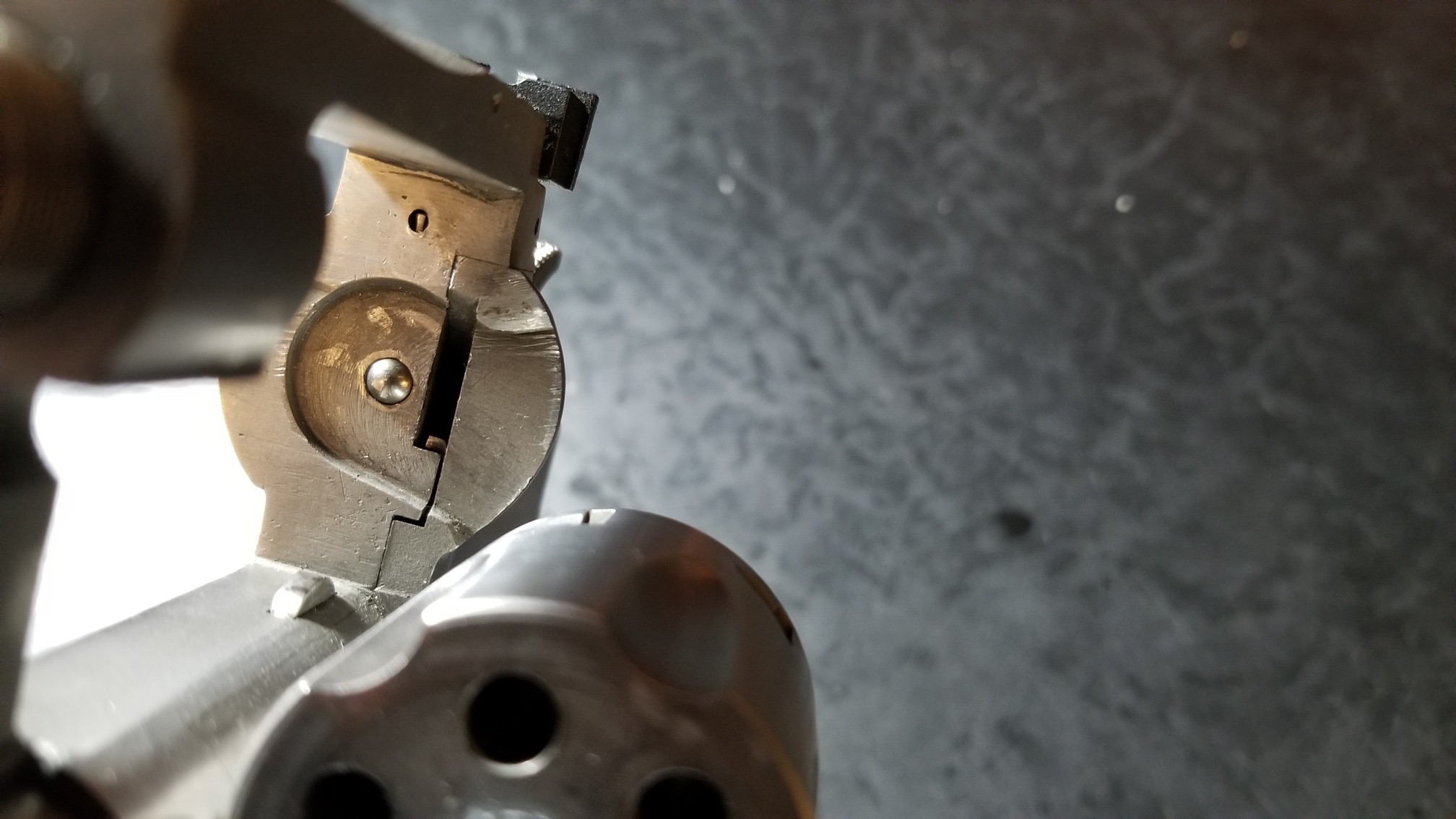

I stand corrected on the firing pin...they are different. The .22 is a blade-type pin and the center fire is a pin-type, however, they are in fact located at different positions in the frame. Attached is a .22 and .32. If you bored everything on centers I'm not sure where the firing pin will hit. What about the extractor....what are you doing with that?
January 7, 2018
Offline
xringchaser said
Yes
Is it blasphemy to ask if it has to be a Dan Wesson?Though, I think I remember a post a while back about one for sale sonewhere. Probably got picked up already though.
I saw a few .32 H&R mag revolvers by other makers for sale on gunbroker.
November 10, 2018
Offline
The extractor was reamed with the cylinder.
I put a fired case in the frame/cylinder and pulled the trigger. The case has a hit between the side of the primer pocket and the primer. It did strike the edge of the primer so it may be close?
