8.67" stainless HV Shroud
Avatar
Didymus1of12
Member
Members
Forum Posts: 1
Member Since:
July 10, 2022
sp_UserOfflineSmall Offline
1
August 4, 2022 - 8:21 pm
sp_Permalink sp_Print

I have purchased an 8.67" stainless Heavy barrel shroud with 3 ports on the top of the barrel, each port being 0.125" in width, the first port being 0.375" form the muzzle of the barrel, with spacing distances of 0.125" between the ports and I wanted to know what length barrel will this shroud fit? I am guessing a 9" barrel, but those seem to be rare.

Avatar
Stinger
Member
Members
Forum Posts: 2901
Member Since:
February 16, 2016
sp_UserOfflineSmall Offline
2
August 5, 2022 - 5:12 am
sp_Permalink sp_Print

That is a shroud for a Compensated barrel, guessing an 8" and it uses a recessed barrel nut, that requires a special barrel nut tool.

Avatar
snake-eye
Fort Myers, Florida
Member
Members


Dans Club
Forum Posts: 1744
Member Since:
December 5, 2008
sp_UserOfflineSmall Offline
3
August 5, 2022 - 8:57 am
sp_Permalink sp_Print

Definitely a compensated barrel shroud for an 8" barrel. In addition to what Stinger said, it also requires a special knurled nut for the end of the shroud. The nut goes on after the recessed barrel nut is tightened. Without this nut the compensator does not perform its function.

Avatar
DA....64
Wisconsin

Supporter
Members


DWF Supporters
Forum Posts: 1299
Member Since:
June 11, 2016
sp_UserOfflineSmall Offline
4
August 5, 2022 - 2:55 pm
sp_Permalink sp_Print sp_EditHistory

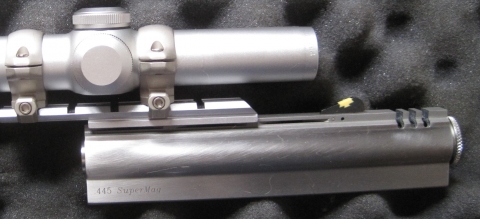

Here is a picture of one of my compensated barrels so you can see what a complete assembly looks like  Note the knurled nut on the end when that is removed there is a notched barrel nut about an inch below the knurled nut you will need a special tool (shown in the picture below) to remove that I will try and locate pictures.

IMG_2156-2-1.JPGImage Enlarger

IMG955805-3-1.jpgImage Enlarger

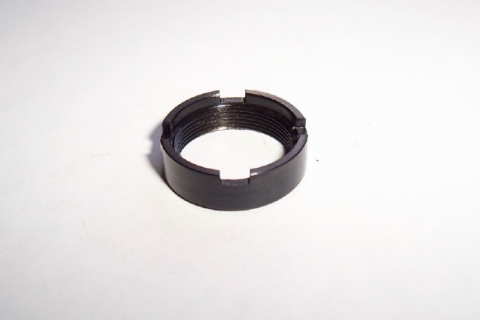

This nut below is the barrel nut below the knurled nut.

BARREL-NUT.jpgImage Enlarger
