Tactical Defense 715 First Issue
Avatar
snake-eye
Fort Myers, Florida
Member
Members


Dans Club
Forum Posts: 1802
Member Since:
December 5, 2008
sp_UserOfflineSmall Offline
1
July 29, 2017 - 7:15 pm
sp_Permalink sp_Print

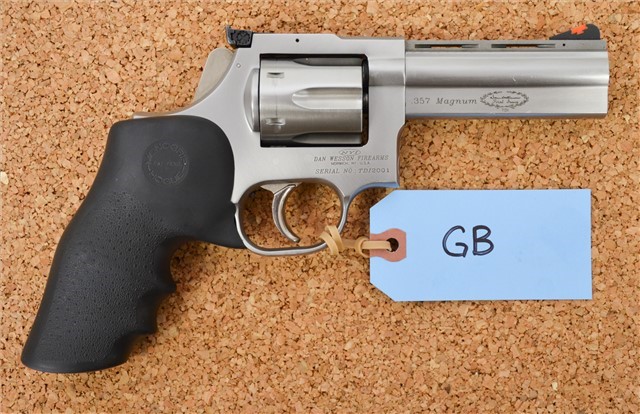

I don't know why, but I fell in love with this gun when I saw it on Gun Broker. I won the bid and now I have it.cool

Of course the first thing I had to do was take it apart and clean, etc. Found some interesting things when I did.

The hand spring was incorrectly positioned on the hand (see photo).

The crane lock was not factory and was crudely replicated. Had to be replaced.

Had to replace the short sideplate screw cause the head was nearly stripped.

Had to replace the hand spring cause it was stretched out of shape from incorrect position.

The hand is "new" and not stainless like other internal parts. There is no 'notch' on the bottom of the tip of the hand like there is on my other 715 and 15-2 hands.

The hammer appears to be a bobbed Large Frame hammer.wow

The long side plate screw would not reach the mainspring guide as needed to disassemble. I had to buy a longer (3/4 inch) screw in order to proceed with the usual disassembly.

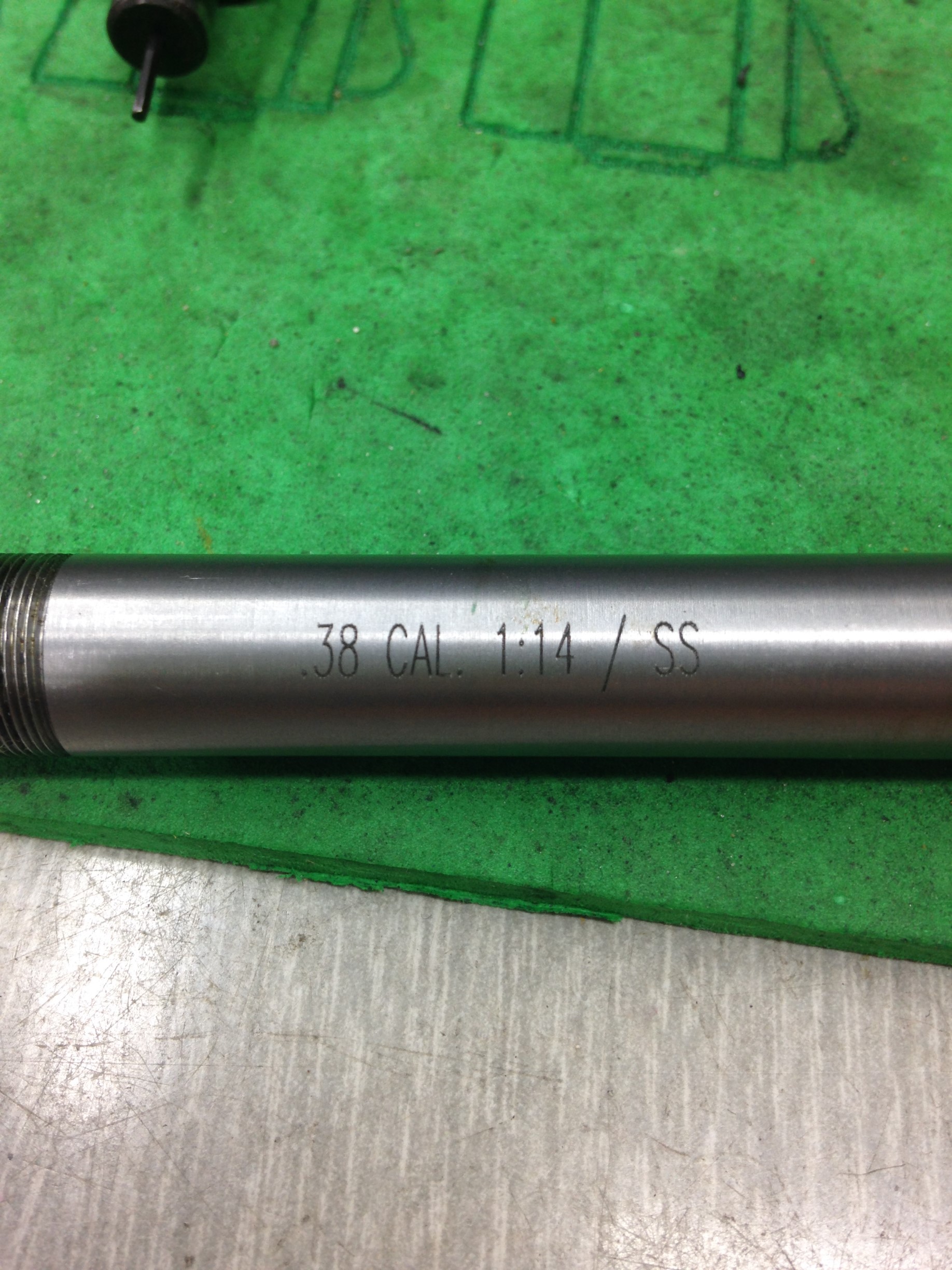

Interestingly, the 4" barrel is marked 1:14 and the 5" barrel is marked 1:18.75.

After cleaning and a 'quick' Average Joe Tune-up, the DA Only trigger pull went from 12 to just under 10 pounds. Looking forward to getting it to the range.big-grin

pix500802166.jpgImage Enlarger

IMG_1058-768x1024.jpgImage Enlarger
IMG_1060.JPGImage Enlarger
IMG_1062-1024x768.jpgImage Enlarger
 IMG_1061-1024x768.jpgImage Enlarger

Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 3375
Member Since:
March 25, 2013
sp_UserOfflineSmall Offline
2
July 29, 2017 - 10:19 pm
sp_Permalink sp_Print

You need one of my 9mm stainless cylinders for that. Quicker to get back on target and to reload.

Avatar
Stinger
Member
Members
Forum Posts: 3001
Member Since:
February 16, 2016
sp_UserOfflineSmall Offline
3
July 30, 2017 - 8:28 am
sp_Permalink sp_Print

snake-eye said
Found some interesting things ...
The hand spring was incorrectly positioned on the hand.
The crane lock was not factory and was crudely replicated. Had to be replaced.
Had to replace the short sideplate screw cause the head was nearly stripped.
Had to replace the hand spring cause it was stretched out of shape from incorrect position.
The hand is "new" and not stainless like other internal parts.position.
There is no 'notch' on the bottom of the tip of the hand.
The hammer appears to be a bobbed Large Frame hammer.
The long side plate screw would not reach the mainspring guide.

Well, it has obviously been repaired by an experienced Gunsmith .. laughing

Avatar
Charger Fan
Northern Utah

Supporter
Members


Moderators
Forum Posts: 10705
Member Since:
January 24, 2009
sp_UserOfflineSmall Offline
4
August 7, 2017 - 4:46 pm
sp_Permalink sp_Print

I assume you reinstalled a small frame hammer? Someone sure did some funky stuff on that one. Have you had a chance to shoot it yet?

Avatar
snake-eye
Fort Myers, Florida
Member
Members


Dans Club
Forum Posts: 1802
Member Since:
December 5, 2008
sp_UserOfflineSmall Offline
5
August 8, 2017 - 9:11 am
sp_Permalink sp_Print

Charger Fan said
I assume you reinstalled a small frame hammer? Someone sure did some funky stuff on that one. Have you had a chance to shoot it yet?

Have not made it to the range with it yet. Hopefully this week.

I have a replacement standard stainless hammer, but I want to wait on that replacement. I'm happy with Double Action only, at least for the time being. The "bobbed" large frame hammer does not appear to be a hammer that was simply bobbed. It seems larger/heavier than the usual large frame hammer. Could be an illusion but it could be intentional. The gun seems to function fine with good timing and lockup.

I did replace the hand with a stainless hand that has the usual notch (Thanks to Ole Dog!) Although it was functioning fine with the un-notched hand. Probably because the star is well worn and thin or intentionally filed down to work with the hand.

The problem with the screw not reaching the mainspring guide turned out to be due to the mainspring seat being backed way out of the frame. When I (finallyembarassed) noticed this fact, I removed the seat, cleaned the threads and reset it at the proper depth with some locktite. Now the screw works as usual.cool

It will be a continuing saga for sure.

Avatar
snake-eye
Fort Myers, Florida
Member
Members


Dans Club
Forum Posts: 1802
Member Since:
December 5, 2008
sp_UserOfflineSmall Offline
6
August 9, 2017 - 6:19 pm
sp_Permalink sp_Print sp_EditHistory

The mystery of this gun's origins is now solved thanks to a very helpful Forum member who talked to Bob Serva. Bob confirmed that the revolver is a prototype that was created for Jim Cirillo and only about 5 were ever made.

I didn't know who Jim Cirillo was until I googled his name on the internet - Impressive Man! I am honored to own one of his guns!worship

Avatar
Rimfire

Supporter
Members


Dans Club


DWF Supporters
Forum Posts: 342
Member Since:
February 4, 2017
sp_UserOfflineSmall Offline
7
August 9, 2017 - 7:11 pm
sp_Permalink sp_Print

Good to know the rest of the story...and congratulations!

Rimfire

"LIFE IS TOO SHORT TO SPEND IT WITH AN UGLY GUN!" - John Taffin







Avatar
Dan Fan
Member
Members


Dans Club
Forum Posts: 1112
Member Since:
October 17, 2008
sp_UserOnlineSmall Online
8
August 9, 2017 - 7:41 pm
sp_Permalink sp_Print
Avatar
DakotaJack
SD
Member
Members
Forum Posts: 1592
Member Since:
August 28, 2009
sp_UserOfflineSmall Offline
Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 3375
Member Since:
March 25, 2013
sp_UserOfflineSmall Offline
Avatar
Stinger
Member
Members
Forum Posts: 3001
Member Since:
February 16, 2016
sp_UserOfflineSmall Offline
Avatar
Charger Fan
Northern Utah

Supporter
Members


Moderators
Forum Posts: 10705
Member Since:
January 24, 2009
sp_UserOfflineSmall Offline
12
August 12, 2017 - 5:52 pm
sp_Permalink sp_Print

snake-eye said
The mystery of this gun's origins is now solved thanks to a very helpful Forum member who talked to Bob Serva. Bob confirmed that the revolver is a prototype that was created for Jim Cirillo and only about 5 were ever made.

I didn't know who Jim Cirillo was until I googled his name on the internet - Impressive Man! I am honored to own one of his guns!worship

Wow, that's really cool! Congrats then, on going with your gut & scoring that one.occasion

Avatar
snake-eye
Fort Myers, Florida
Member
Members


Dans Club
Forum Posts: 1802
Member Since:
December 5, 2008
sp_UserOfflineSmall Offline
13
August 12, 2017 - 7:24 pm
sp_Permalink sp_Print

Thanks Charger.

I got it to the range today and got it sighted in. It functions great and shoots as good as any Dan I have. Planning to use it for some steel matches at my club's range. Should be fun.
