Dan Wesson Model 15 .357 Revolver
Avatar
jimmyj
Member
Members
Forum Posts: 4
Member Since:
April 19, 2025
sp_UserOfflineSmall Offline
1
April 23, 2025 - 8:48 pm
sp_Permalink sp_Print

Dan Wesson Model 15 .357 Revolver #14693

Mfg Monson, Mass.

Experiencing a problem installing a new Crane Lock. (lost the original one field stripping the revolver)

Any help ?

Avatar
605Dart
SW PA
Member

DWF Supporters
Forum Posts: 1152
Member Since:
July 12, 2020
sp_UserOfflineSmall Offline
2
April 23, 2025 - 8:55 pm
sp_Permalink sp_Print sp_EditHistory

Welcome to the forum from PA!!!

One of the revo pro's will be along shortly to help. I never went that far with one yet.

But I think there may be a little fitting required with that part.

Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 4199
Member Since:
March 25, 2013
sp_UserOnlineSmall Online
3
April 24, 2025 - 3:56 am
sp_Permalink sp_Print

Are you sure the serial number is 14693, and not 146930. 14693 would be a porkchop gun and there is no crane lock. The cylinder assembly slides off when the shroud is taken off. You must have a 15-2. A new crane lock may need to be flattened on the sides to fit in the little groove on the crane. Rub it on a stone until it fits.

Avatar
jimmyj
Member
Members
Forum Posts: 4
Member Since:
April 19, 2025
sp_UserOfflineSmall Offline
4
April 24, 2025 - 6:49 am
sp_Permalink sp_Print

I was giving the serial number from the dealer's invoice.

I can not locate the serial number on the revolver.

Avatar
Stinger
Member
Members
Forum Posts: 3608
Member Since:
February 16, 2016
sp_UserOnlineSmall Online
5
April 24, 2025 - 8:51 am
sp_Permalink sp_Print

jimmyj said
I can not locate the serial number on the revolver.

Right side of frame, last line of rollmark data.

Avatar
jimmyj
Member
Members
Forum Posts: 4
Member Since:
April 19, 2025
sp_UserOfflineSmall Offline
6
April 24, 2025 - 2:31 pm
sp_Permalink sp_Print

Checked the right side of the frame. Only markings are  four lines: (near the front frame)

Dan Wesson Arms

Monson Mass.

Model 15

Made In USA

Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 4199
Member Since:
March 25, 2013
sp_UserOnlineSmall Online
7
April 24, 2025 - 4:15 pm
sp_Permalink sp_Print

You do have a porkchop, model 15.the serial number is in the crane. Open the cylinder. There is no crane lock. What I said before. The cylinder assembly slides off when you remove the shroud.

Avatar
Stinger
Member
Members
Forum Posts: 3608
Member Since:
February 16, 2016
sp_UserOnlineSmall Online
8
April 24, 2025 - 6:34 pm
sp_Permalink sp_Print
Avatar
jimmyj
Member
Members
Forum Posts: 4
Member Since:
April 19, 2025
sp_UserOfflineSmall Offline
9
April 24, 2025 - 9:11 pm
sp_Permalink sp_Print
Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 4199
Member Since:
March 25, 2013
sp_UserOnlineSmall Online
10
April 25, 2025 - 2:09 am
sp_Permalink sp_Print

Models 11, 12, 14, and 15 (38 Special 8 and 9 too) have a flange on the shroud that looks like a porkchop bone. The flange has a dimple on it that fits on a bump on the frame to align the sight on the muzzle with the rear sight. The later 14-2 and 15-2 have no flange on the shroud and the shroud is located by a hole in the frame end of the shroud that fits over a roll pin in the frame. To remove the cylinder requires the sideplate to be removed.

Avatar
KurtB
Pleasant Plains, Illinois
Member

Dans Club
Forum Posts: 1754
Member Since:
February 24, 2013
sp_UserOfflineSmall Offline
11
April 25, 2025 - 9:16 am
sp_Permalink sp_Print

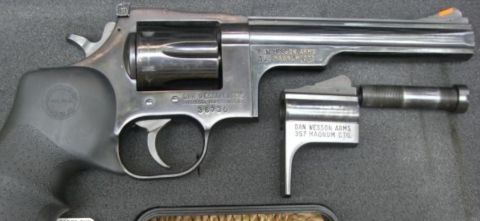

IMG_7192.pngImage Enlarger

Like Ole Dog said, when the barrel assembly is detached, the part protruding downward looks like a pork chop bone.


Avatar
3ric
NC
Member
Members
Forum Posts: 618
Member Since:
October 18, 2017
sp_UserOfflineSmall Offline
12
April 25, 2025 - 1:17 pm
sp_Permalink sp_Print

I’m wondering if our friend is referring to the crane latch needing replaced. The model 12 and 15 have a different latch, and he may be trying to replace with a 15-2 one, which won’t work. Photos would be very helpful.

Avatar
Ole Dog
ocala, fl

Supporter
Members


Dans Club
Forum Posts: 4199
Member Since:
March 25, 2013
sp_UserOnlineSmall Online
13
April 25, 2025 - 3:12 pm
sp_Permalink sp_Print

Maybe he thought that since it slides off it was missing the crane lock? I personally believe the ability to slide the cylinder assembly off without removing the sideplate is a plus.

Avatar
Stinger
Member
Members
Forum Posts: 3608
Member Since:
February 16, 2016
sp_UserOnlineSmall Online
14
April 25, 2025 - 8:14 pm
sp_Permalink sp_Print

Ole Dog said
Maybe he thought that since it slides off it was missing the crane lock? I personally believe the ability to slide the cylinder assembly off without removing the sideplate is a plus.

Me too and me too.
