sight adjustment
July 7, 2018
2:27 pm
Avatar
Wbrco
Member
Forum Posts: 17
Member Since:
February 3, 2018
sp_UserOfflineSmall Offline

OK, read the posts here and still don’t understand.



How do the 2 sides interact?

[Image Can Not Be Found]

[Image Can Not Be Found]

July 7, 2018
4:03 pm
Avatar
Stinger
Member
Forum Posts: 2329
Member Since:
February 16, 2016
sp_UserOfflineSmall Offline

Wbrco said
How do the 2 sides interact?

One side moves sight up or down and the other side moves the sight left or right. There are also posts on how to post pictures.

July 9, 2018
2:18 pm
Avatar
Wbrco
Member
Forum Posts: 17
Member Since:
February 3, 2018
sp_UserOfflineSmall Offline

Yea, and it’s not easy on a mobile phone either.  Mobile browsers just sometimes don’t work.

Here are the photos.

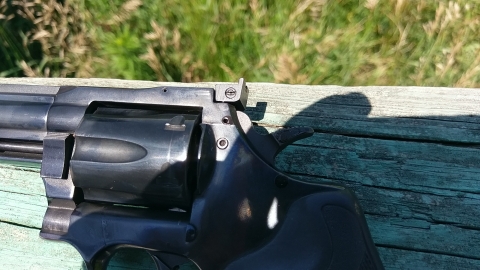

Which side is which?  And the little hole does something too.gun1.jpgImage Enlarger

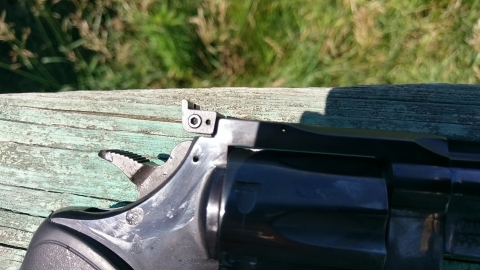

gun2.jpgImage Enlarger

July 9, 2018
9:53 pm
Avatar
rwsem
SOWELA (Southwest Louisiana)

Supporter

Dan's Club
Forum Posts: 4497
Member Since:
February 22, 2009
sp_UserOnlineSmall Online

That’s the windage.  Elevation is on top. Hope that helps.

Technically, the glass is always full; half liquid, half air....

July 10, 2018
9:10 am
Avatar
snake-eye
Fort Myers, Florida

Dan's Club
Forum Posts: 1321
Member Since:
December 5, 2008
sp_UserOfflineSmall Offline

The allen head screw on the right side of your sight is for windage. It moves your point of impact right or left depending on which way you turn the screw. Turning it clockwise moves point of impact to the right; counterclockwise moves it left.

The elevation screw (standard slot head) is on the top of the sight body. It moves the point of impact of the bullet up or down, depending on which way you turn it. Clockwise moves point of impact down; counterclockwise moves it up.

These are the only adjustments available for this sight.

Hope this helps.

March 24, 2019
12:14 pm
Avatar
Rex Beachmont
South Florida
Member
Forum Posts: 136
Member Since:
July 22, 2018
sp_UserOfflineSmall Offline

@snake-eye:

Thanks! Always to the point. Readily useful.

My Baby Lets Me Do What I Want

March 24, 2019
9:16 pm
Avatar
3ric
Member
Forum Posts: 77
Member Since:
October 18, 2017
sp_UserOfflineSmall Offline

The early 15-2’s (and I assume all pork chops) have an allen head adjustment screw for elevation instead of a slot head. Same size as the windage and side plate screws. Not sure when they changed.
