Hello, all.

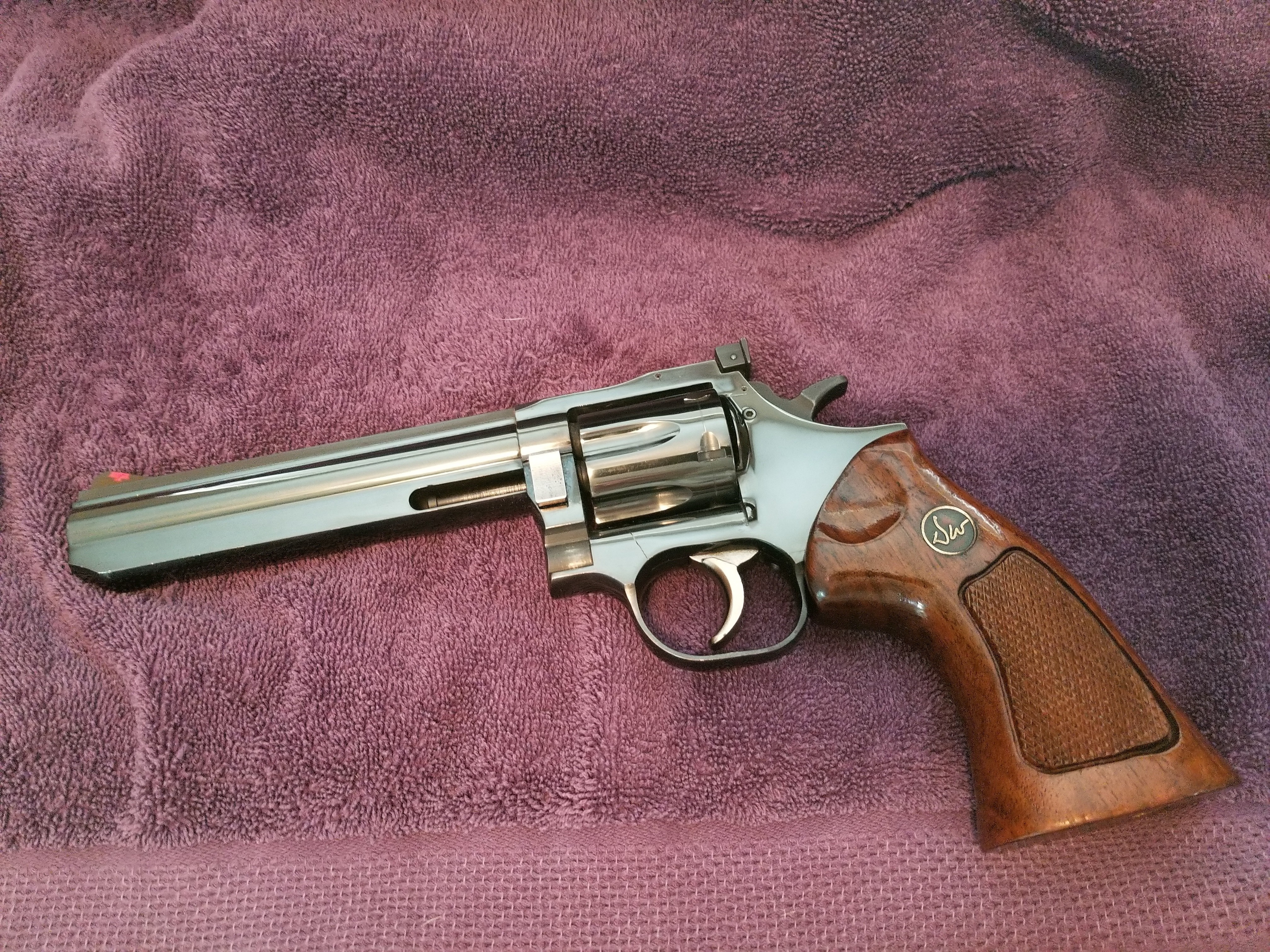

I have almost completely disassembled my Dan Wesson Palmer 6" Fixed Barrel.

The one thing that eluded me was removing the Cylinder Latch. Although I'm nearly sure that this is held in by a HEX head bolt and not a pin, I cannot find the proper size. I say not a pin because there is only ONE hole where the pin/bolt would be and it is on the muzzle side of the cylinder.

I have also looked at many available schematics, including the ones at Numrich's and they show a PIN. This being a Palmer Fixed Barrel seems to make a difference?

Thanks.
